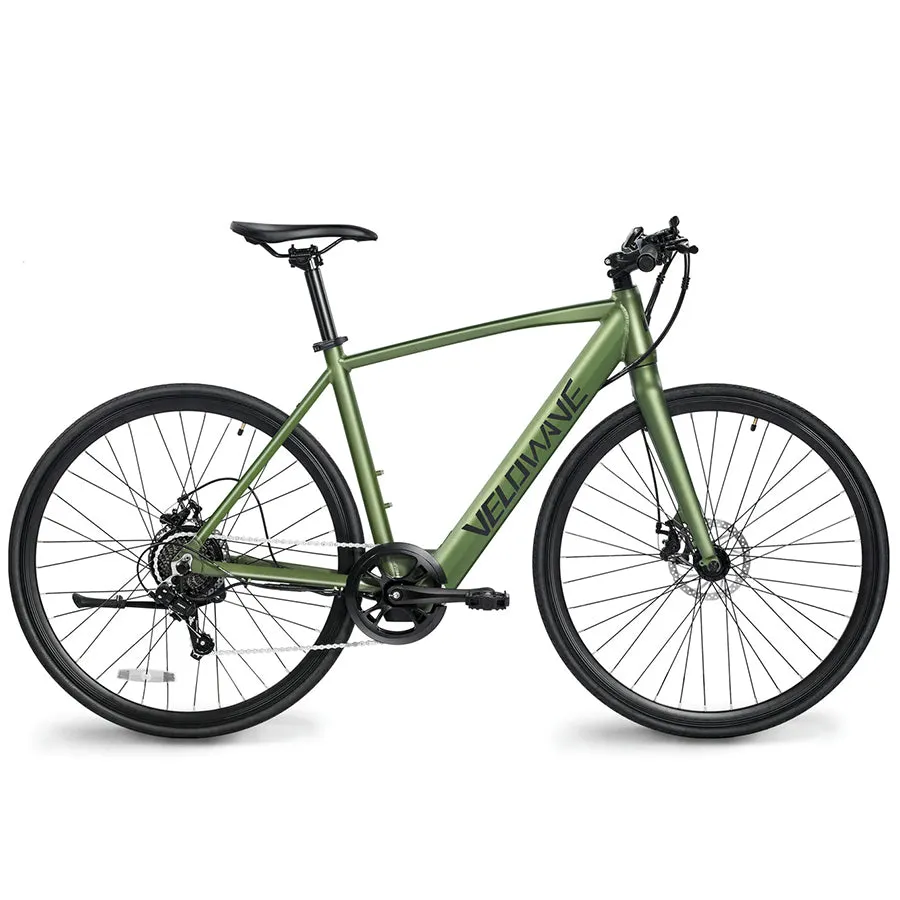

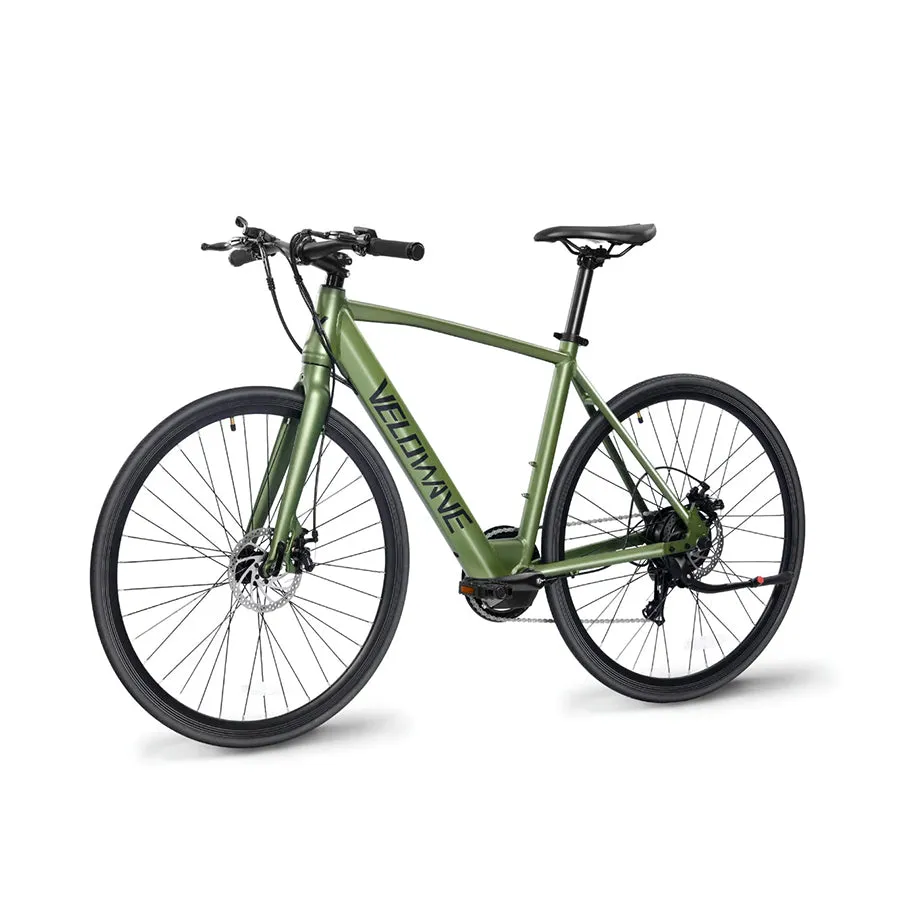

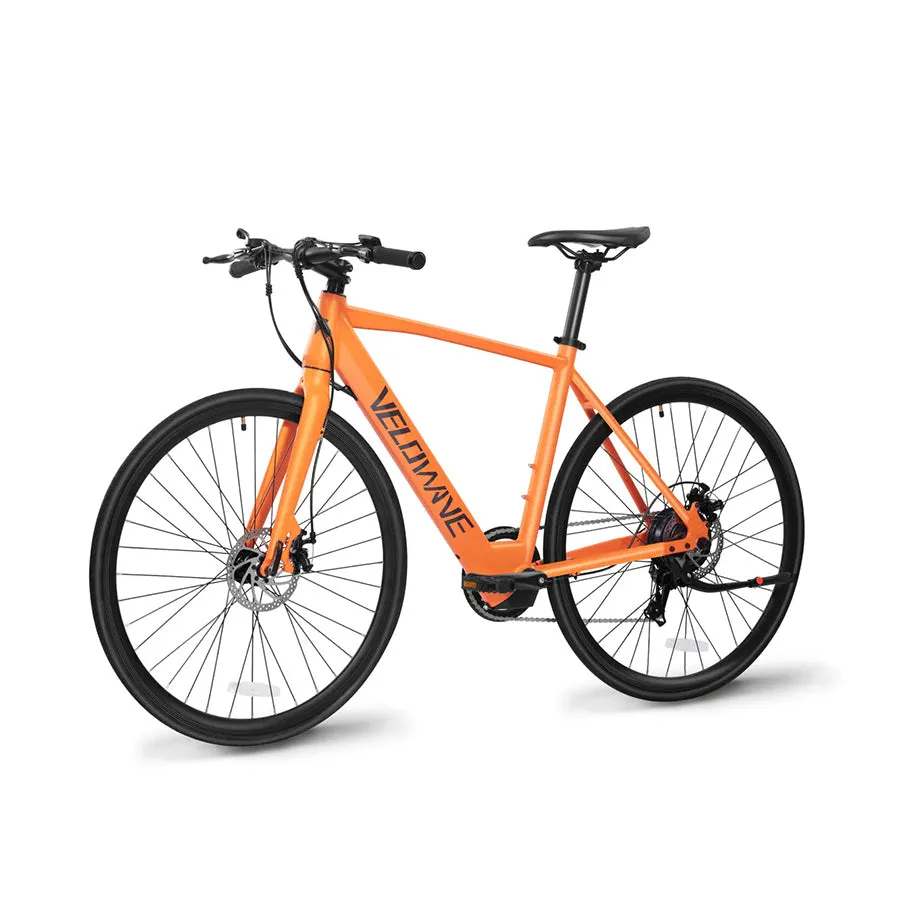

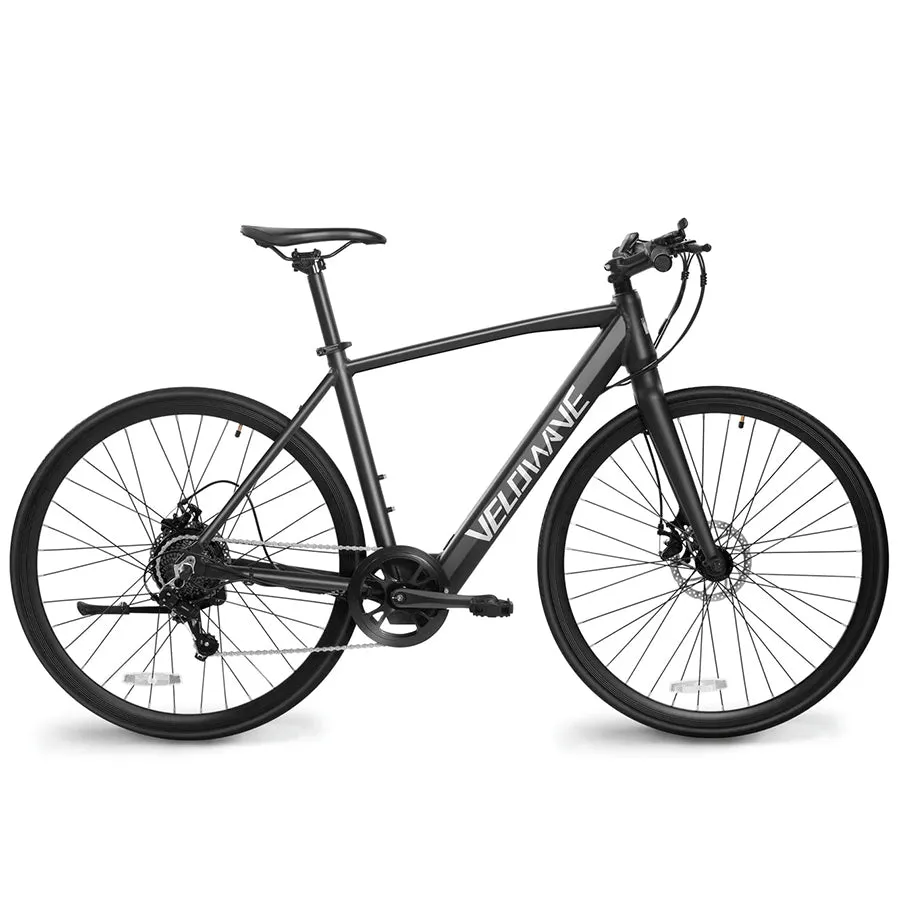

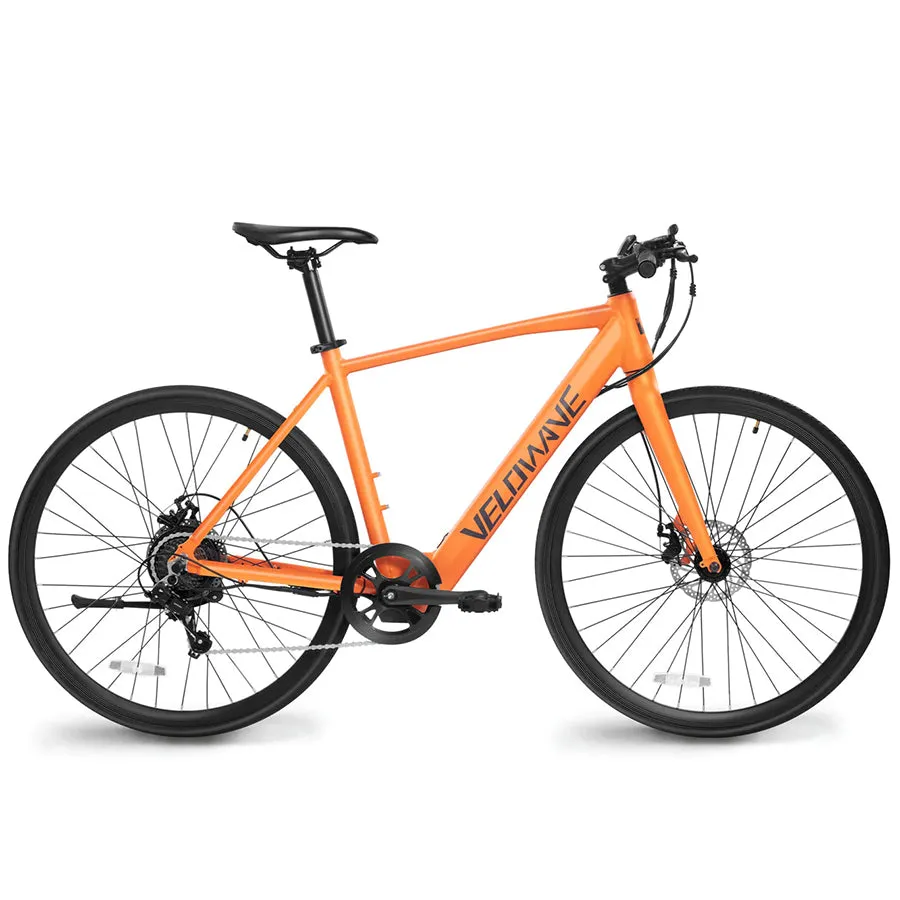

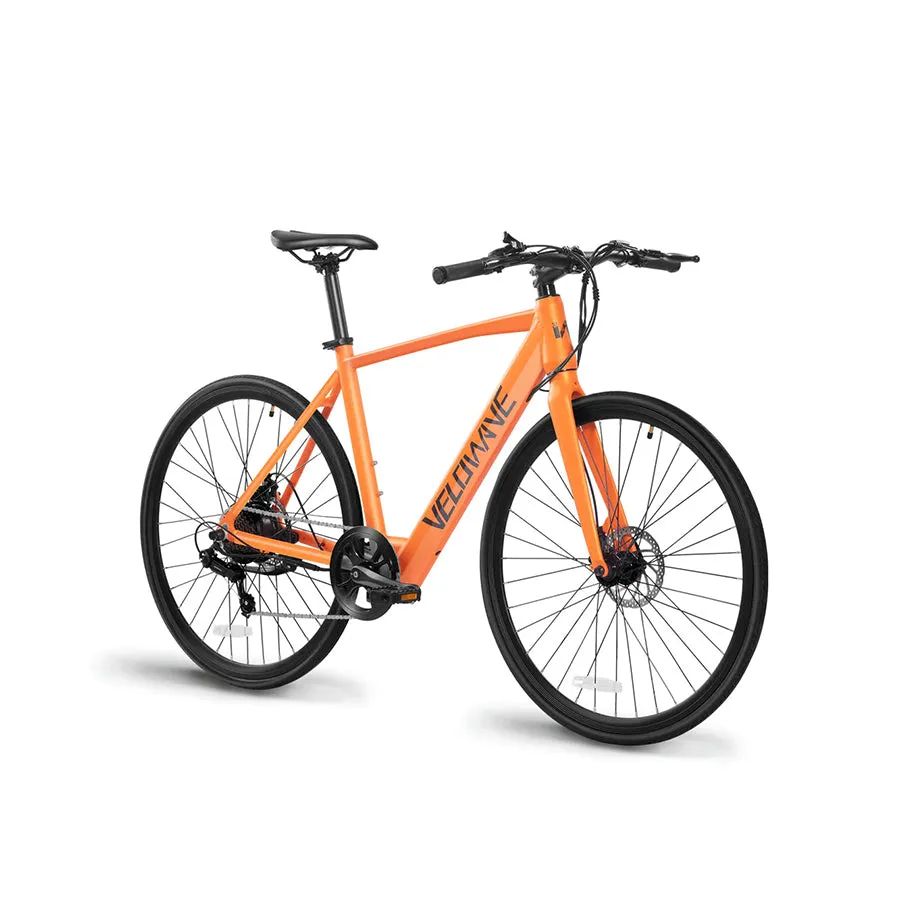

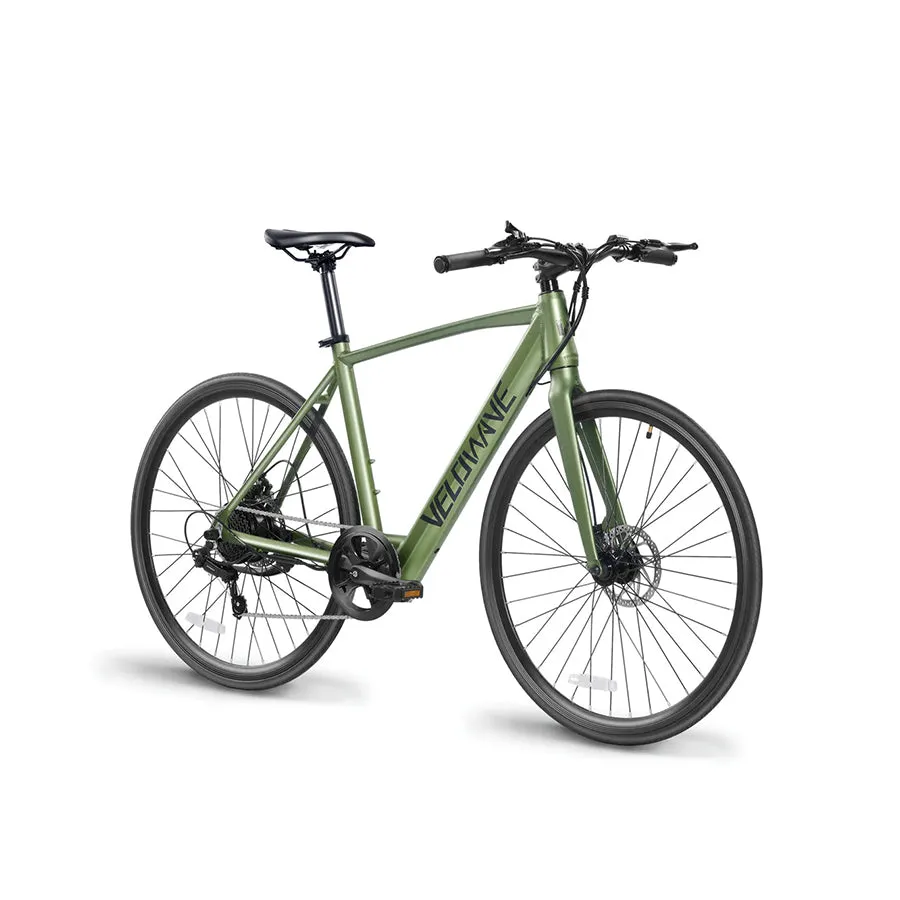

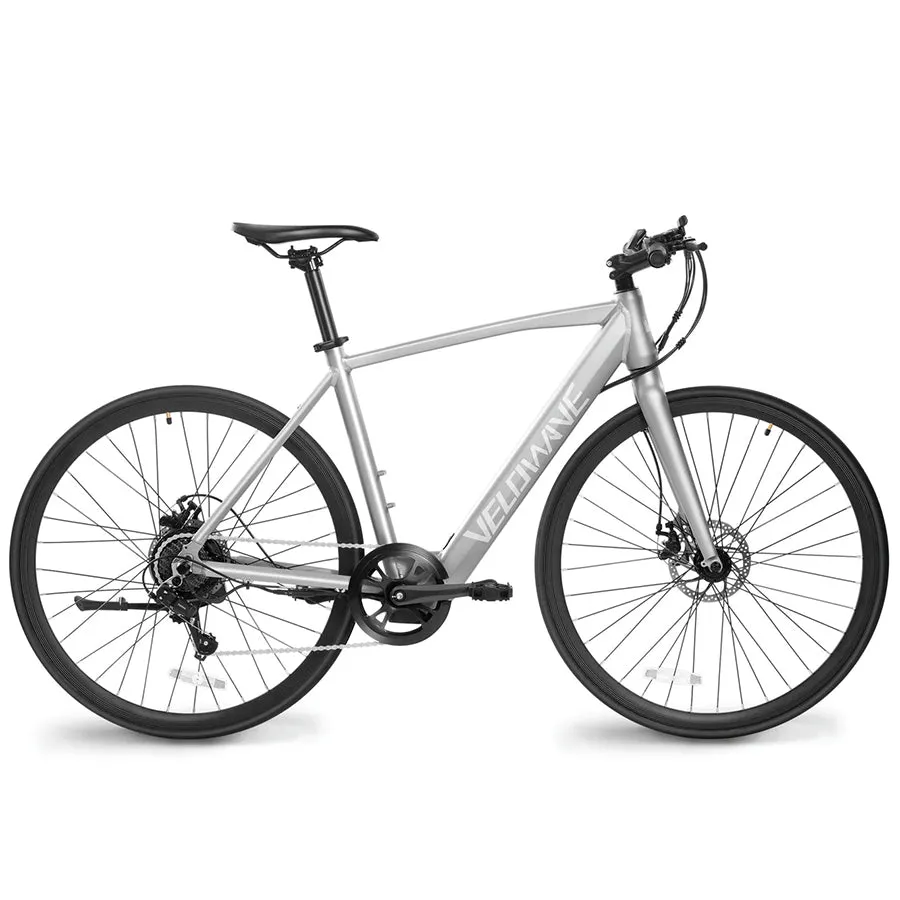

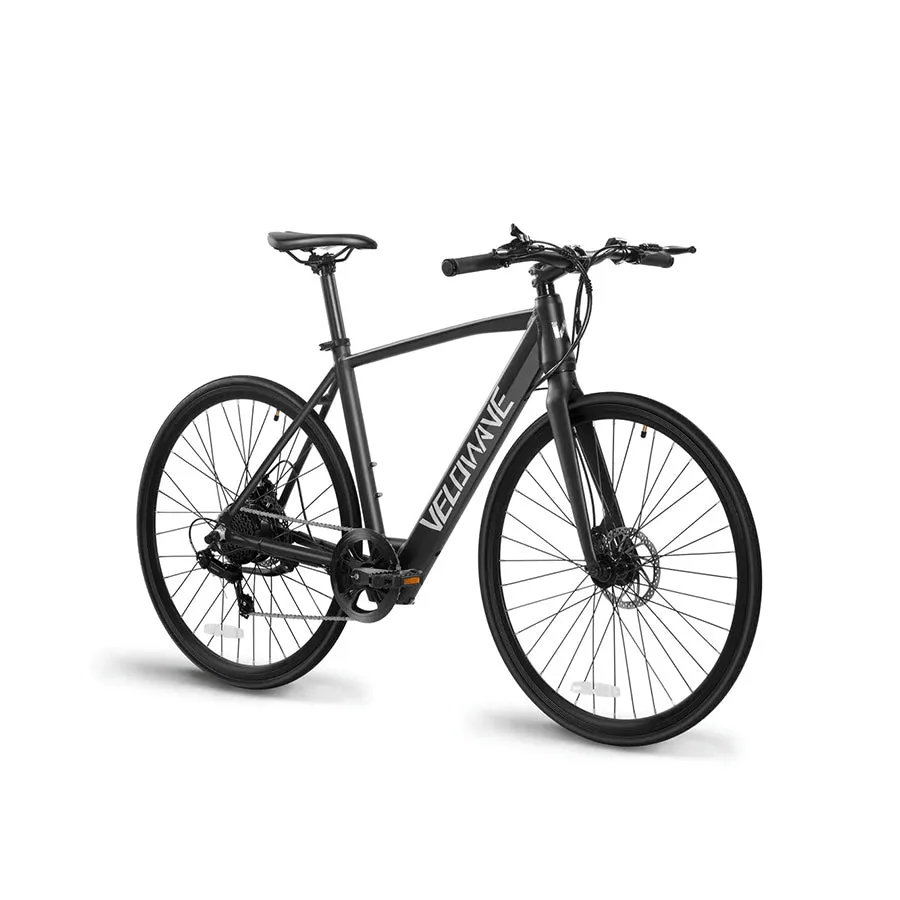

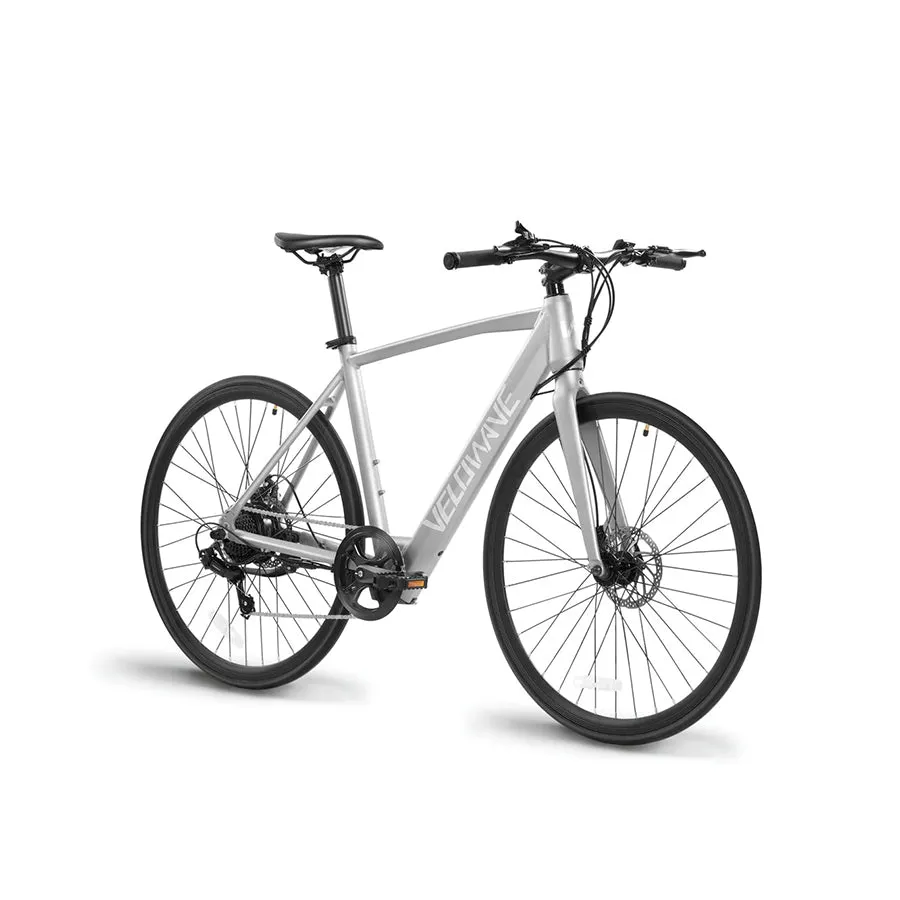

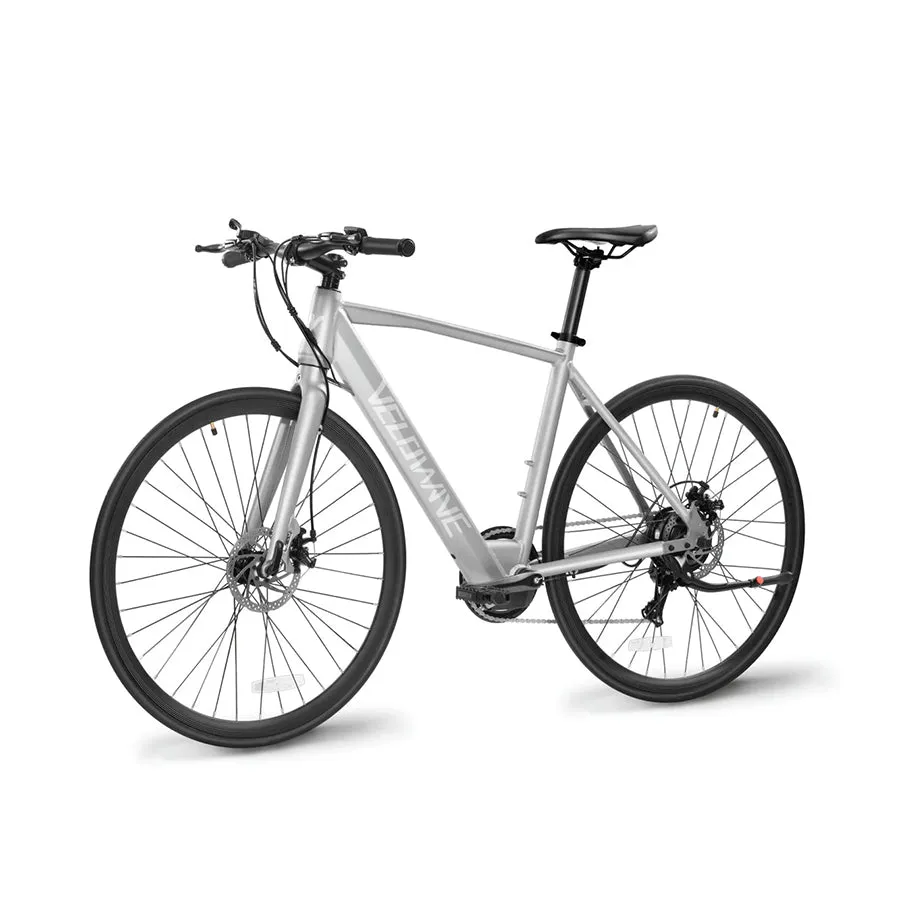

Velowave Spirit
Lightweight Step-Through Electric Bike - Top Speed 15mph - 250W
Spirit
Explore the Velowave Spirit, the road E-bike engineered for extended speed and distance. Portable and agile, it's your ultimate commuting ally. Conquer inclines and extend your journeys with a high-performance motor and dependable drivetrain, all while enjoying up to 30 miles on a single charge. Embrace the pinnacle of road cycling and commuting at an unmatched value!
TOP SPEED
MOTOR POWER
Removable Battery
TIRES
Rider Height
PAYLOAD CAPACITY
36 lbs Lightweight Design
With its lightweight frame and efficient motor, this bike offers quick acceleration and effortless hill climbing, ensuring smooth and powerful rides. Count on its agility and speed for your next adventure!
36v 6.4Ah Large Capacity Battery
Providing a robust battery, this bike can cover up to 30 miles on just one charge, ideal for riders seeking longer journeys without the hassle of frequent recharging.
Peak 425W BAFANG Motor
Powerful BAFANG motor provides great torque and a smooth ride. This motor lets you experience effortless acceleration and secure control, helping you get where you need to go quickly and safely.
Shimano 7-Speed Drivetrain
Enjoy a seamless ride with a powerful Shimano 7-Speed Drivetrain, for maximum control on any terrain.
Top Quality Samsung Batteries
This top-of-the-range electric-powered bike features quality Samsung batteries, guaranteeing a reliable and powerful performance.
Flat Handlebar
Its flat handlebar provides enhanced aerodynamic performance and comfort, making it perfect for the committed cyclist.
700Cx32C Tires
Its 700Cx32C tires provide a smooth ride with minimal effort - perfect for any road or path.
Dual Disc Brake
Maximum stopping power no matter the terrain. Experience total control and an adrenaline rush as you hit the road.
6061 Aluminum Frame
Designed with a lightweight 6061 aluminum frame for maximum durability and flexibility.
SPECIFICATIONS
Specifications
| Frame Size | Standard (mm) |
| Handlebar Height | 996mm |
| Reach | 405.5mm |
| Head Tube Length | 145mm |
| Seat Tube Length | 490mm |
| Standover Height | 760mm |
| Wheelbase | 1012.8mm |
| Total Length | 1695mm |
| Seat Height Min/Max | 840/1040mm |
General
- Classes:Class 1(E-Bikes with a PAS only and receive motor assistance up to 20 mph)
- Max Speed:15MPH by pedal
- Range:20 to 30 Mile by Pedal(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame:6061 Aluminium, Non-removable built-in battery.
- Fork:Rigid Front Fork
Wheels
- Rim Material: Aluminum
- Tire: Kenda Standard Tires
- Tire Size:700Cx32C
E-system
- Battery:36V 6.4Ah, 230.4Wh, Samsung Cells
- Charger:Input 100-240V~, 50-60Hz. Output 36V 1.5A DC Connector.
- Motor:BAFANG Geared Hub Motor，Rated 200W, Peak 425W, Max Torque 32NM
- Controller:36V 15A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: No equipped
- Front Light: No Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring:44T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar:Alloy, 680mm width
- Grips: Nylon Lock-on
- Brake:Front & Rear Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost:Forged Alloy, Ø31.6*350mm
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 40mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 680mm
Weight
- Net Weight:16.5kg(36.4lb)
- Gross Weight:23kg(50.7lb)
- Weight limit:113kg(250lb) Payload Capacity
Size
- Product Size:1680x980x680mm
- Packing Size:1430x250x775mm
