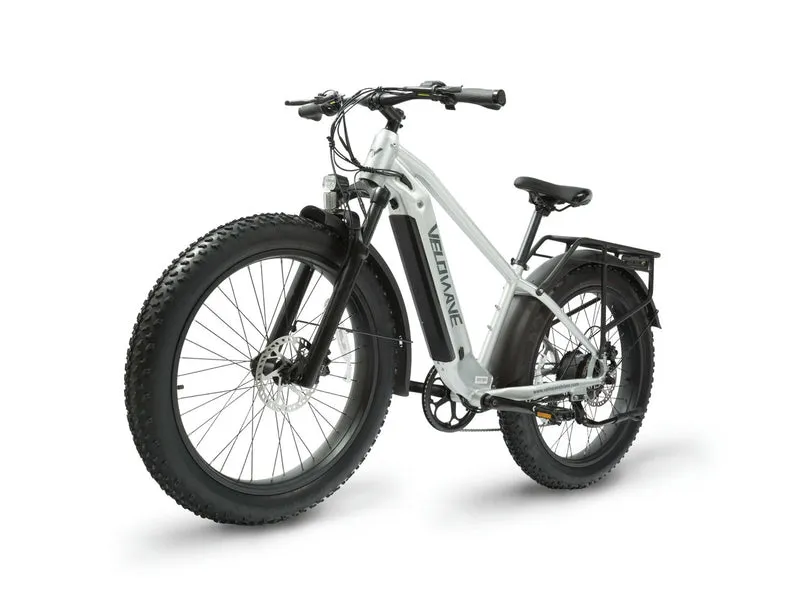

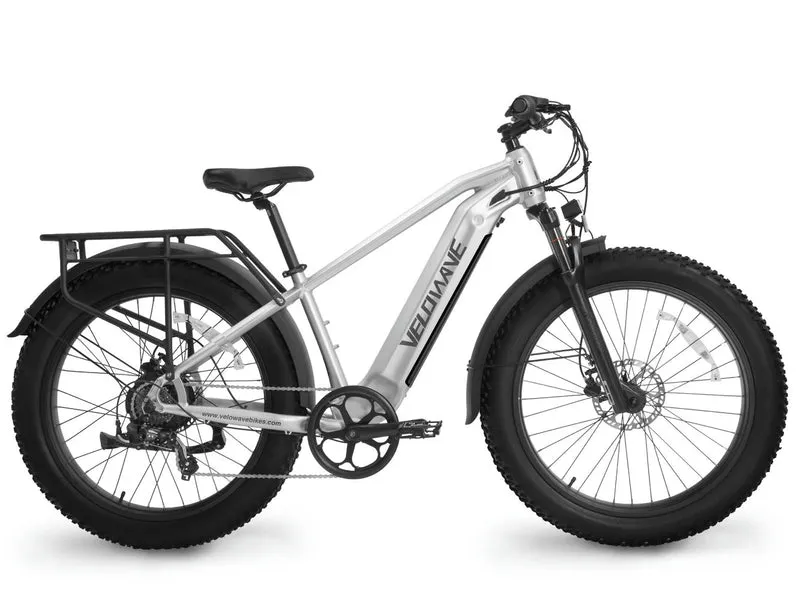

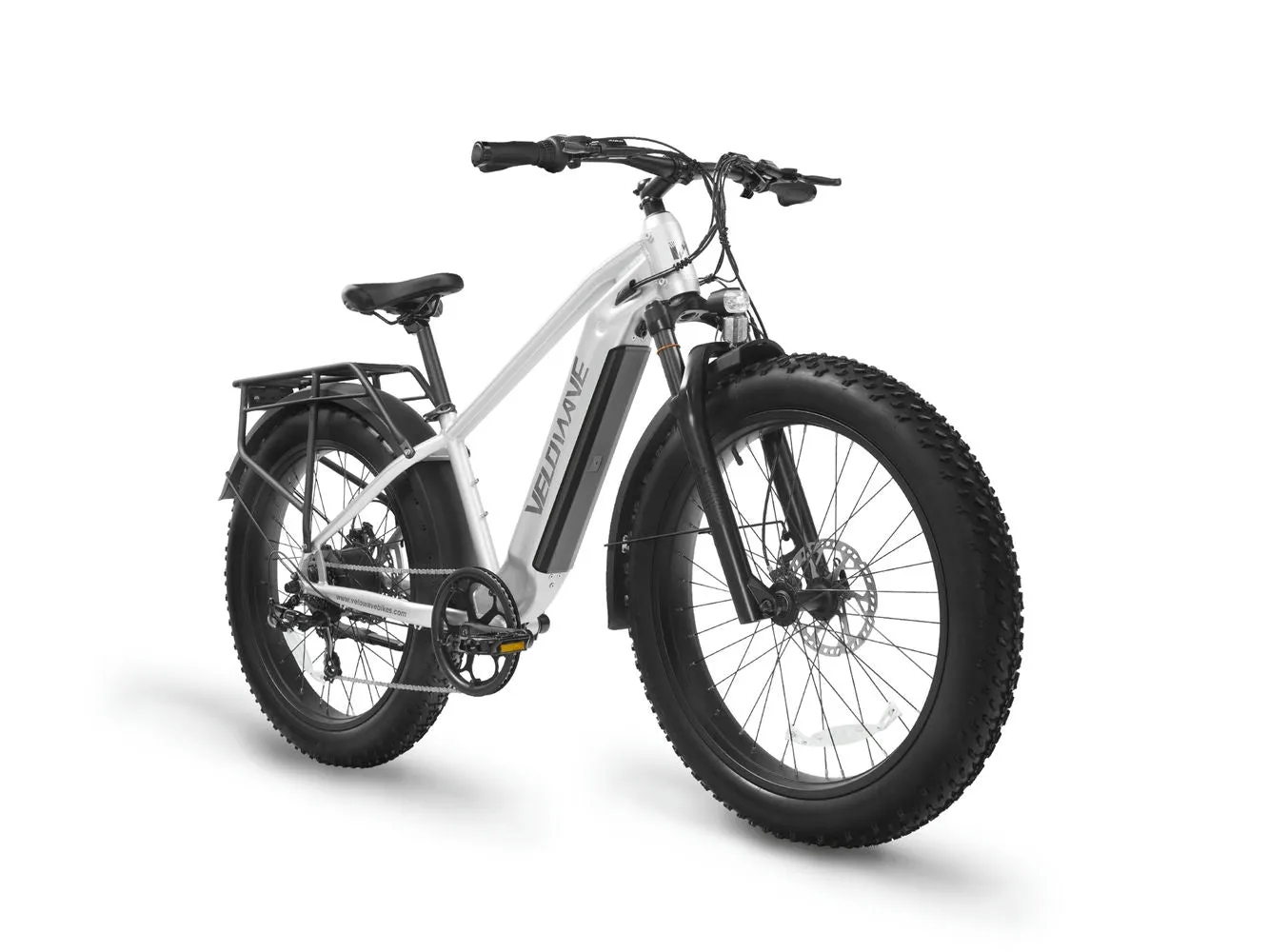

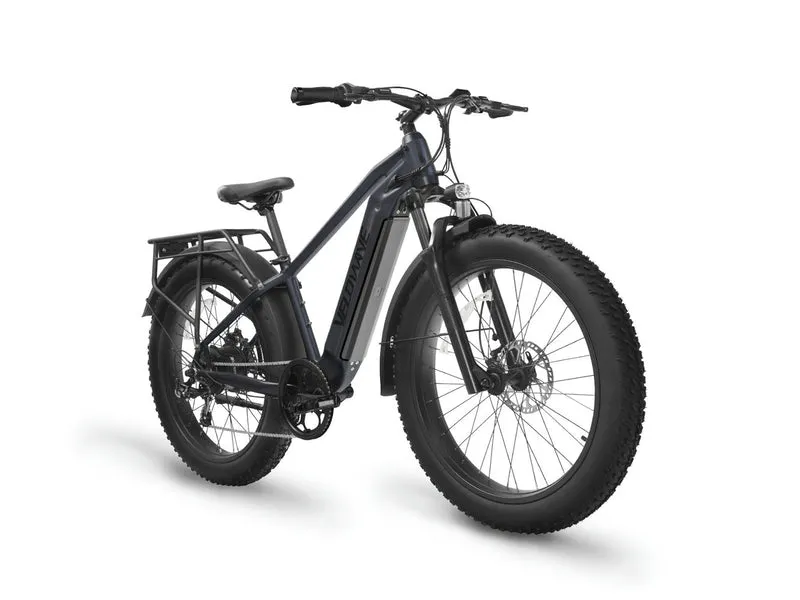

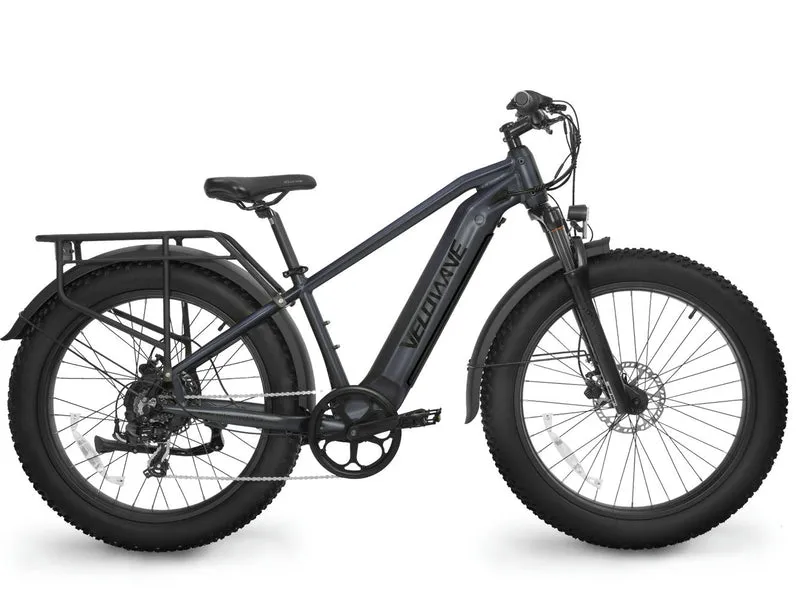

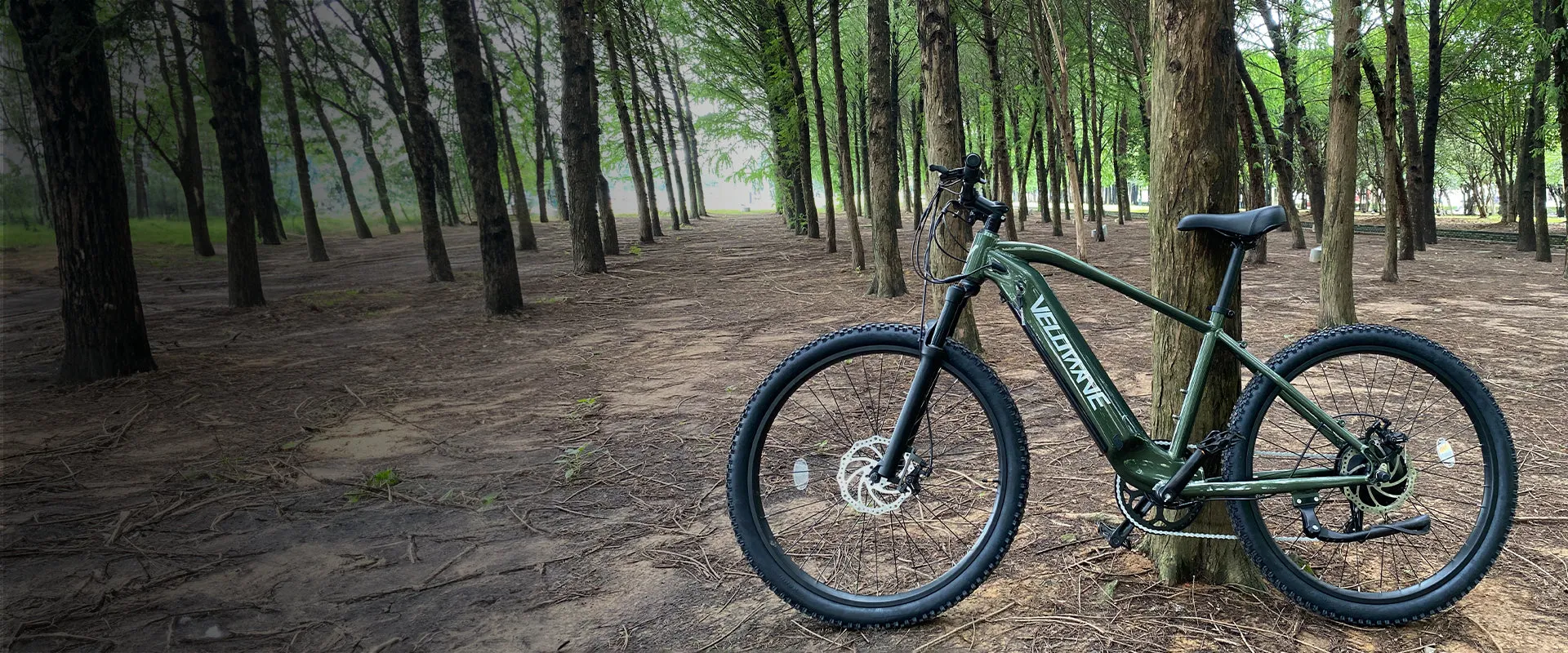

The Velowave Ranger 2.0 Fat Tire All-Terrain Electric Bike offers the best of both worlds for riders - a combination of adventure and city riding. Featuring a speed sensor, it can reach up to 28 Miles / Hour and a range of 90 miles with Pedal Assist. This powerful bike also features a 750W motor, 48V 15AH removable battery, and 4" fat tires to conquer any terrain, and is capable of carrying up to 300 lbs.
Bringing together adventure and convenience, this powerful electric bike is the perfect choice for exploring the city and beyond. It's equipped with a 750W motor, speed sensor, and a 48V 15AH removable battery that can reach 28 Miles / Hour and deliver a range of 90 miles with Pedal Assist. With 4" fat tires and a weight capacity of 300 lbs, you'll easily navigate any terrain.
Velowave Ranger 2.0 Fat Tire All-Terrain Electric Bike Features:

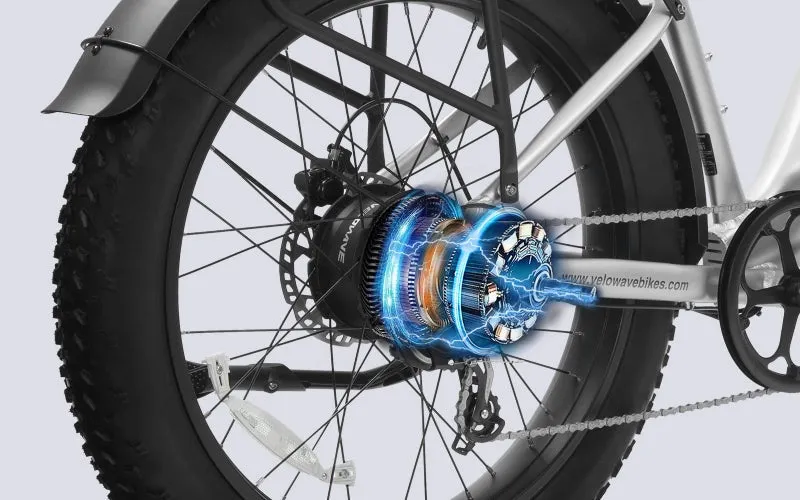

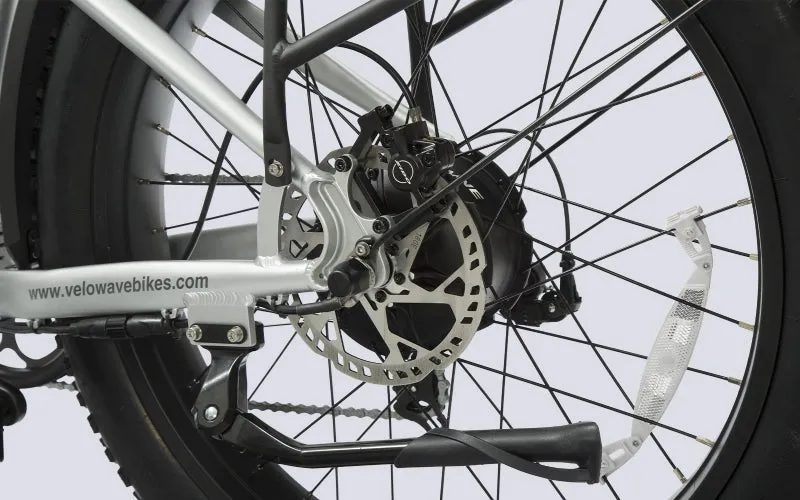

- Effortless Power, Unmatched Stability: Our 750W Geared Hub Motor delivers formidable electric power, ensuring a stable ride with ease. Conquer hills effortlessly and cruise at peak speeds. Elevate your cycling adventure with this powerful and efficient upgrade.
- Sturdy Accessibility, Heavy-Duty Support: Crafted with a reliable 6061 Aluminum Frame, our e-bike ensures easy on-off access for all riders. The reinforced rear triangle supports up to 350 lbs, making it accommodating for most users. Paired with a sturdy rear rack, carrying heavy loads becomes effortless.
- Effortless Command: Experience seamless control with our system offering multiple riding modes. The hydraulic disc brake ensures reliable, sensitive braking, delivering a perfect and secure braking experience.
- Power at Your Fingertips: Fueled by a premium 48V 15AH LG battery, our e-bike covers 30-45 miles on a single charge. Easily lockable and removable, take it anywhere for hassle-free charging at home or the office.
- Seamless Speed Mastery: Experience unparalleled riding with the Shimano 7-Speed Derailleur. Its 7-speed cassette transmission, with an 11T to 32T gear range, conquers hills and enables high-speed cruising effortlessly. Enjoy a ride that matches your every pace.

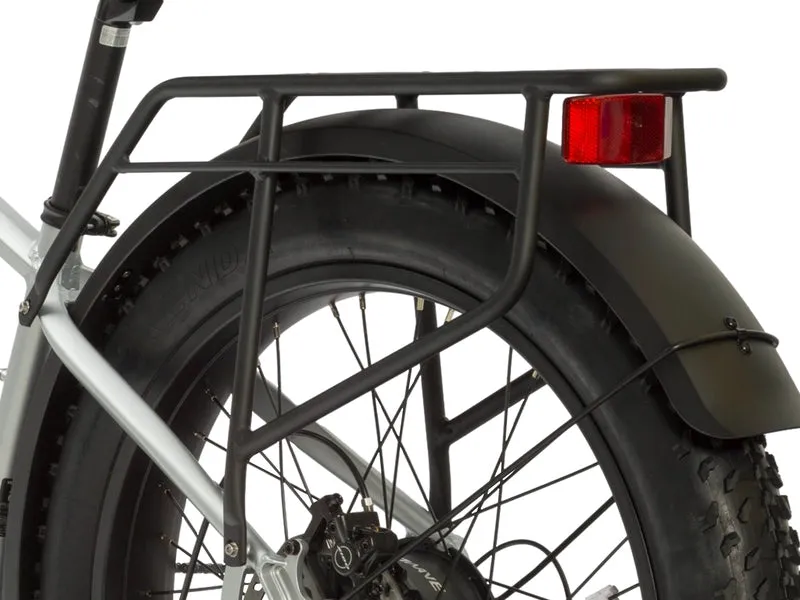

- Functional Elegance: Enhance your ride with a rear rack and upgraded 1-piece fender package. Effortlessly carry cargo and stay stylishly clean on- and off-road. Embrace a stable, functional framework with no need for extra accessories.

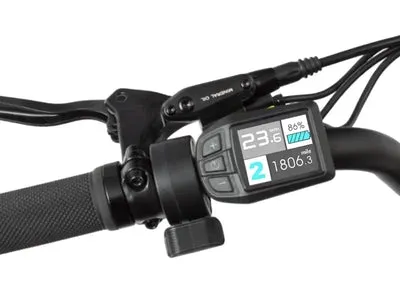

- Throttle Control, Smart Display: Enjoy instant power with the convenient thumb throttle. Switch between pedal and throttle modes for accelerated rides. The advanced display offers real-time metrics and customizable modes, ensuring a personalized and informed journey.

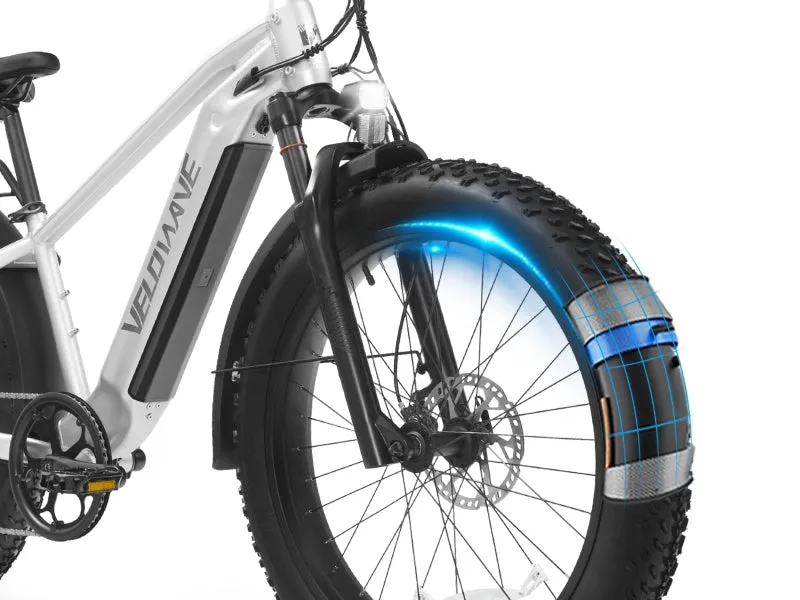

- Versatile Terrain Mastery: Our 26"*4.0" Fat Tire e-bike conquers any landscape—snow, sand, or rough terrain. With anti-skidding, wear-resistant performance, enjoy smooth rides, expanding your cycling horizons effortlessly.

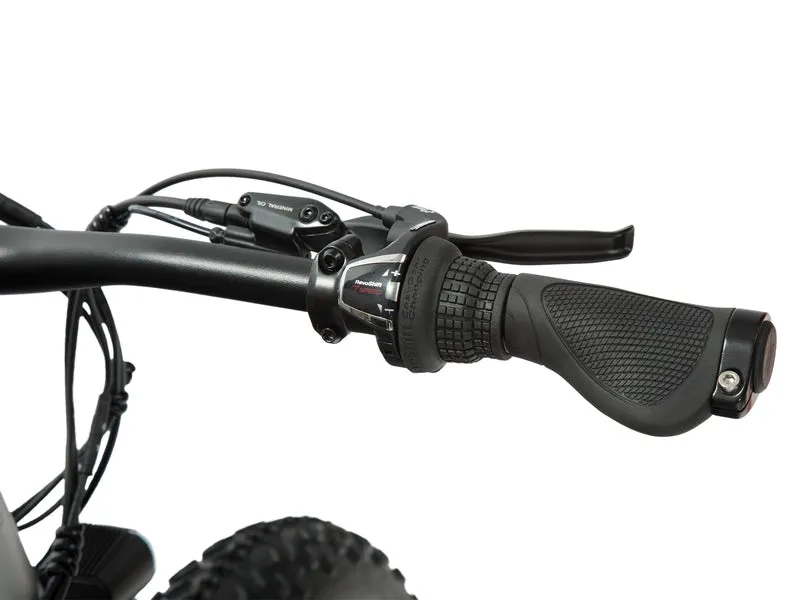

- Comfort in Every Hold: Enjoy a more comfortable e-bike ride with our ergonomic lock-on grips. Designed to adapt to your palms and fingers, these upgraded grips come standard, ensuring a personalized and enjoyable riding experience.
Velowave Ranger 2.0 Fat Tire All-Terrain 750W 48V Electric Bike - Specifications |
GENERAL | |
Classes | Class 3 (E-Bikes with a PAS only but receive motor assistance up to 28 miles/hour) |
Max Speed | 28 miles/hour by pedal, 20 miles/hour by throttle |
Range | Up to 90 Miles by Pedal; 30 Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight, etc.) |
Pedal Assist | 5 Levels |
FRAMESET | |
Frame | 6061 Aluminium, Removable Battery, Internal Routing |
Fork | Hydraulic Suspension Fork with 60mm travel, with lockout |
WHEELS | |
Rim Material | Aluminum |
Rim Size | 26" 36H Front & Rear |
Front Wheel Spokes | 13G x 244/246mm, Black Stainless |
Rear Wheel Spokes | 12G x 217/219mm, Black Stainless |
Tubes | Butyl Rubber, Schrader Valve |
Hubs | Disc Nutted Front /Rear Axles |
Tire | Kenda Fat Tires |
Tire Size | 26" x 4.0" |
E-SYSTEM | |
Battery | Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells |
Charger | 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED |
Motor | Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 85NM |
Controller | 48V 25A Peak |
Display | Multifunctional Color-Screen Display |
Pedal Assist | Cadence Sensor |
Throttle | Thumb Throttle |

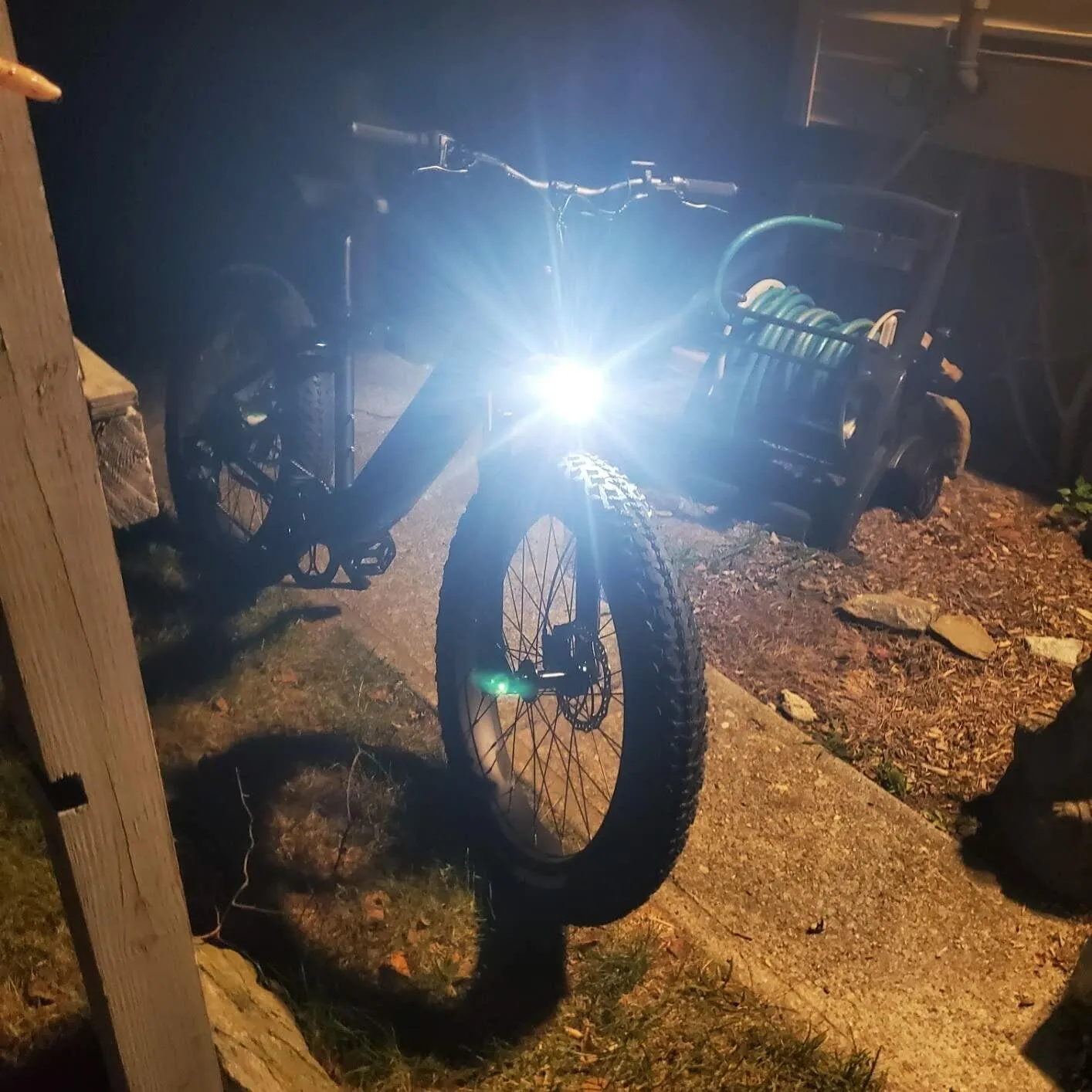

Front Light | 48V 10W LED Light, 30 LUX |
DRIVETRAIN | |
Shifter | Shimano 7-Speed RevoShift |
Rear Derailleur | Shimano ARDTY500D 7-Speed, Long Cage |
Crank & Chainring | 52T, 170mm Alloy Crank |
Freewheel | Shimano 14-28T, 7-Speed freewheel |
Pedal | Alloy Platform Pedals |
Chain | KMC 124 Link, 7-Speed |
COMPONENTS | |
Saddle | Comfortable Wide Saddle |
Seatpost | Forged Alloy, Ø30.4*350mm |
Seat Clamp | Ø35mm Quick Release |
Stem | Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT:70mm, RISE:±7° |
Handlebar | Aluminum Ø31.8mm, Width 720mm |
Headset | Sealed Bearing Headset |
Grips | Nylon Lock-on, Ergonomic Comfort |
Brake | Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function |
Brake Rotor | 180mm, 1.9mm thick |
Kickstand | Side Kickstand, Alloy, Rear Mount |
Fenders | Plastic 26"x110mm |
Rear Rack | Aluminum Alloy Rear Rack |
WEIGHT | |
Net Weight | 33.1kg (72.97lb) (including battery) |
Gross Weight | 43.8kg (96.56lb) |
Battery Weight | 4kg (8.82lb) |
Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
SIZE | |
Product Size | 1930x740x1210mm |
Packing Size | 1570x330x900mm |
SIZE and FIT
Total Length | 1914mm |
Head Tube Length | 140mm |
Head Tube Angle | 70 Degrees |
Seat Tube | 425mm |
Seat Tube Angle | 70.3 Degrees |
Handlebar Height | 1109mm |
Bottom Bracket Height | 361mm |
Chainstay Length | 496mm |
Front-Center | 669mm |
Wheelbase | 1170mm |
Standover Height | 704mm |
Reach | 404mm |
Seat Height Min/Max | 823mm/1012mm |
What's in the box:
- Electric Bike x 1
- Charger x 1
- Battery x 1
- Front Lights & Reflector Combo x 1
- Spare Spokes x 2
- Spare Screws x 2
- Front Axle Skewer x 1
- Pedals x 2
- Instruction Manual x 1
- Allen Wrench x 1
- Open End Wrench x 2
Safe Packaging:
Velowave E-Bikes come with a manufacturer's warranty against manufacturing defects and workmanship. Please click on the link for the Velowave warranty details.
