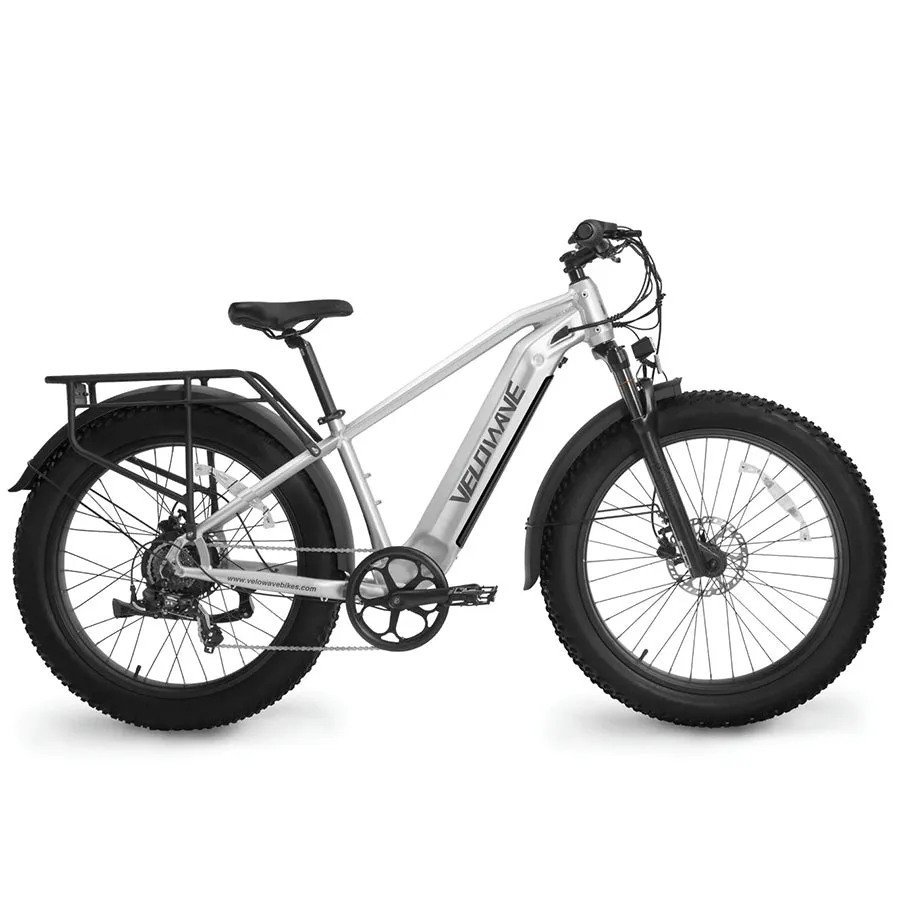

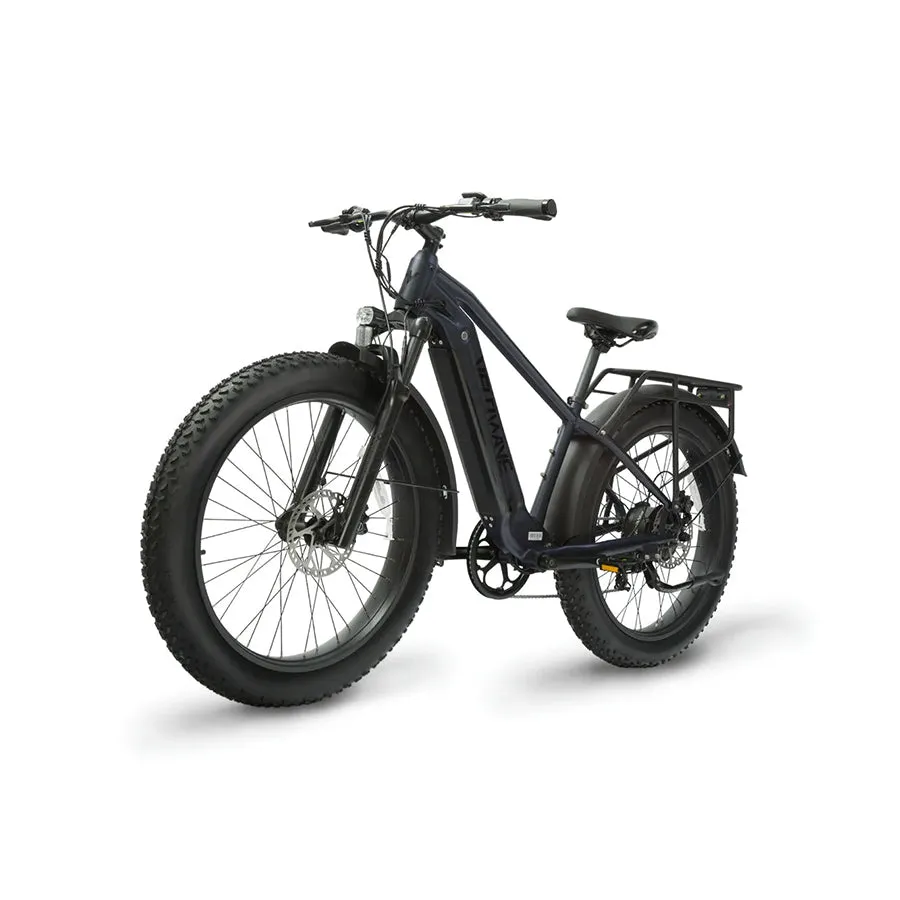

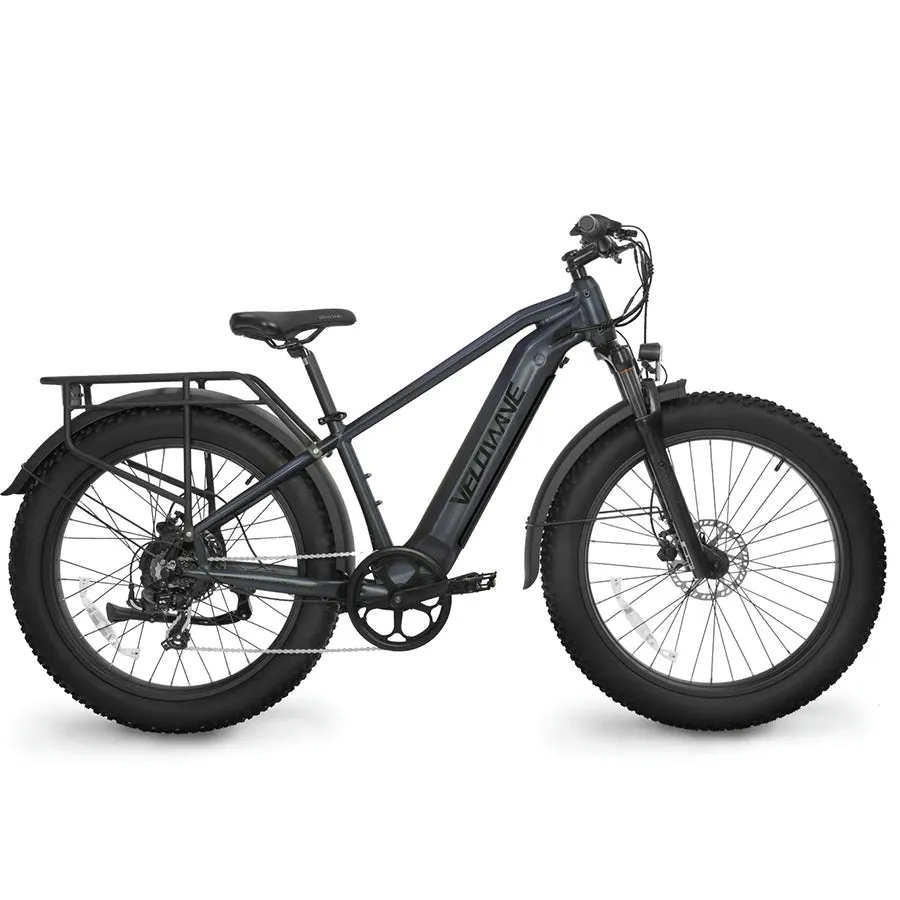

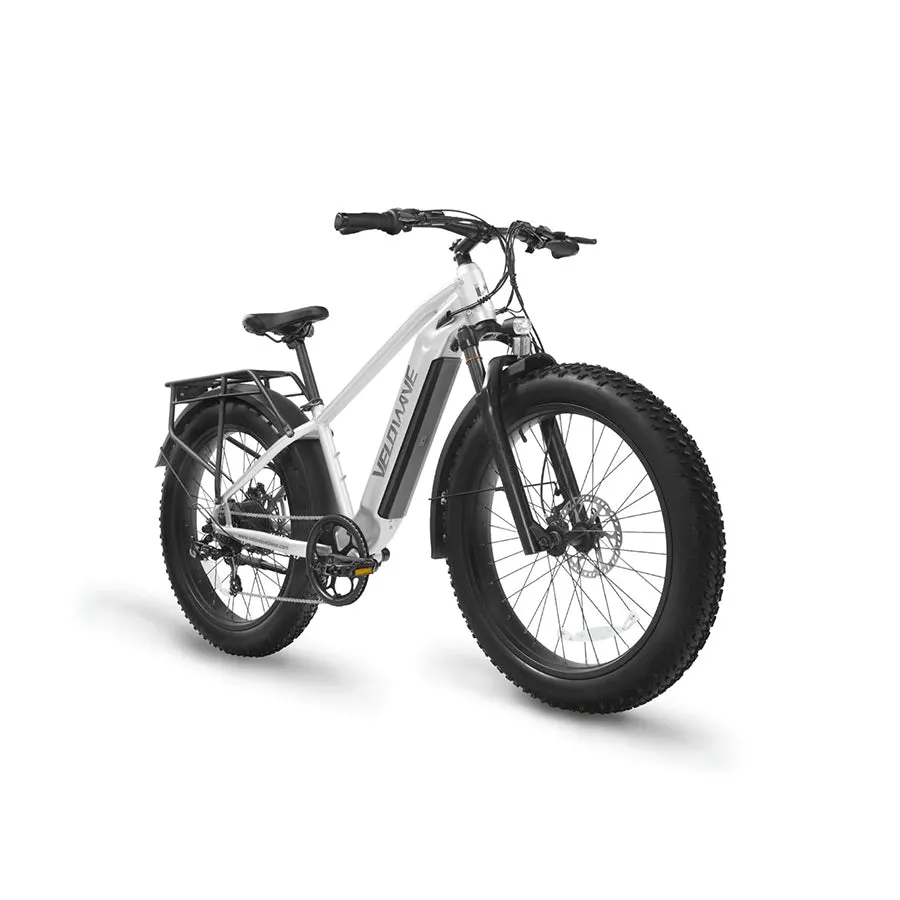

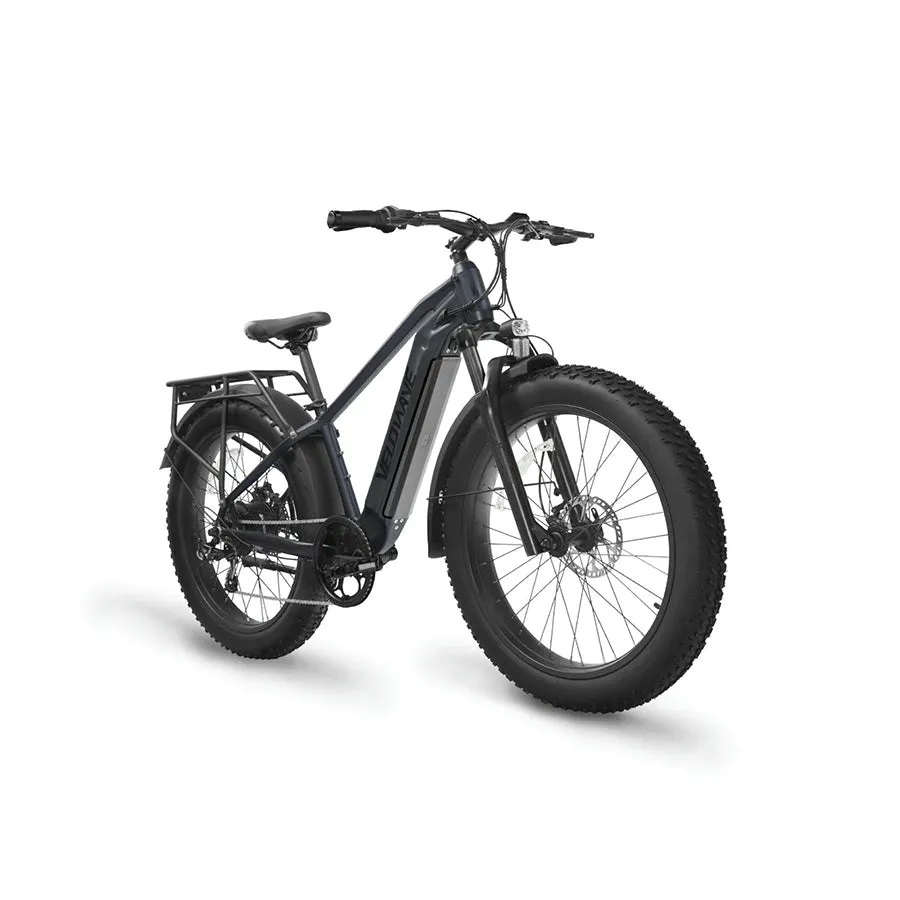

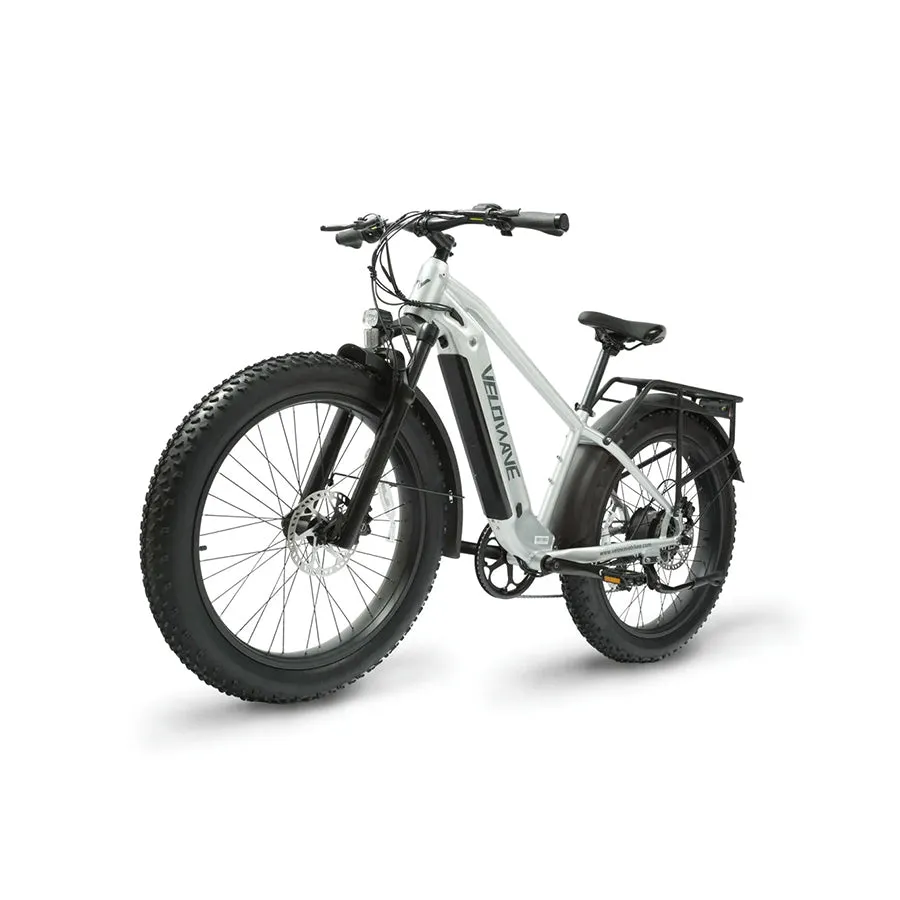

Velowave Ranger 2.0 Step-Through
All-Terrain Fat Tire Electric Bike - Top Speed 28mph - 750W
Velowave Ranger 2.0 Step-Through
Combining power, speed, and ease of use, the Ranger Step-Through delivers a top speed of 28 MPH propelled by a dynamic 750W geared hub motor. Its removable 48V 15AH LG battery ensures an extended and versatile ride, covering 30-45 miles on a single charge. Cruise effortlessly on rugged 4" fat tires, providing excellent traction and stability across any terrain.
The step-through frame enhances accessibility, making it an inclusive choice for various individuals, supported by a robust payload capacity of 300lbs. Additionally, enjoy the convenience of a complimentary rear rack and fenders, all included at no extra cost!
TOP SPEED
MOTOR POWER
Removable Battery
TIRES
Rider Height
PAYLOAD CAPACITY
750W Geared Hub Motor
Strong and powerful, providing strong electric power and making it stable to reach speed peaks. You can cruise around with little to no effort. Wait, climbing the hill, no problem.
All Terrains Fat Tire
26"*4.0" Fat Tire, anti-skidding, wear-resistant, adapt to snow, sand, and various terrains. The fat tire enables smooth riding on rugged landscapes means you can get more cycling experiences.
Convenient Control
The convenient control system, multiple riding modes, hydraulic disc brake system, reliable and sensitive
Removable LG Battery
Powered by a high-quality 48V 15AH LG battery, it covers 30-45 miles on a single charge. Conveniently lockable and removable, take it home or to the office for charging.
Shimano 7-Speed Derailleur
7-speed cassette transmission featuring an 11T to 32T gear range. Conquer steep hills and cruise at high speeds effortlessly for an enjoyable, unmatched riding experience.
Upright Handlebar
Embrace comfort and safety with the Ranger E-Bike's upright handlebars. Enjoy a clearer view of the road, reduced wrist pressure, and enhanced control for extended, ergonomic rides.

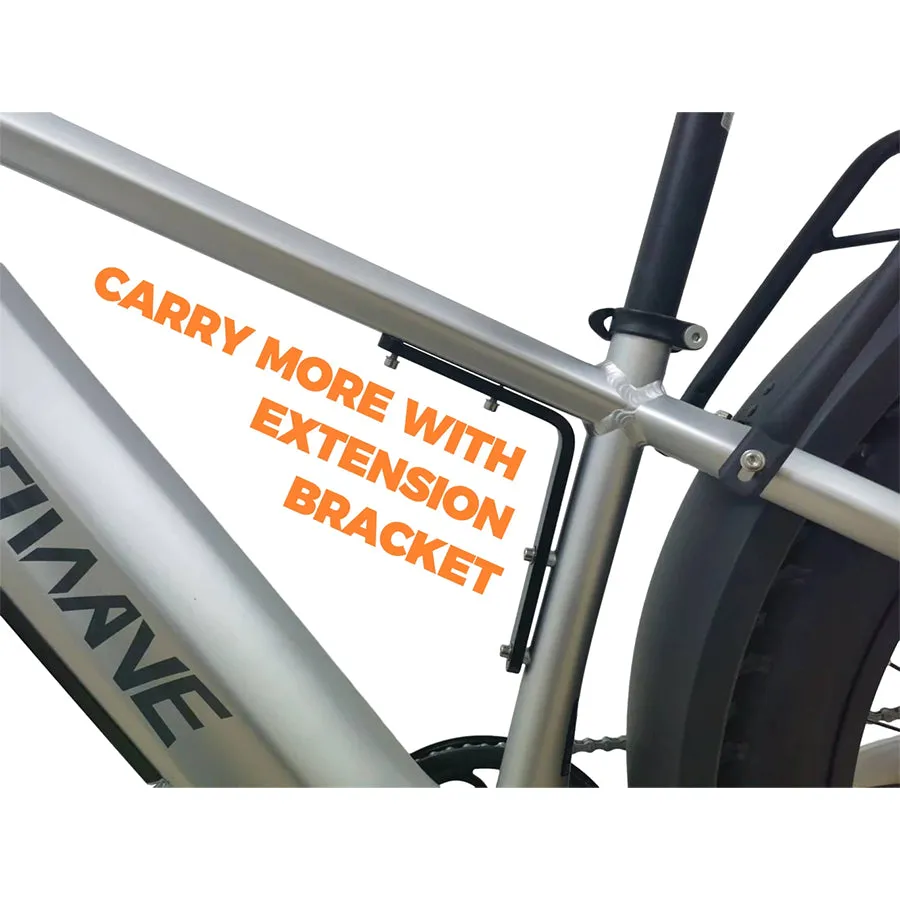

Rear Rack and Fenders
Complete with a practical rear rack and upgraded 1-piece fender package. Carry cargo effortlessly, while staying stylishly clean on- and off-road. Enjoy a stable framework that's both functional and sleek – no need for extra accessories.
Reliable 6061 Aluminum Frame Structure
The Step-Thru Frame ensures easy on-off access for all riders. Reinforced rear triangle supports up to 350 lbs, accommodating most users. With a sturdy rear rack, carrying heavy loads becomes effortless.
Convienent Thumb Throttle & Advanced Display
Experience power on demand with the intuitive thumb throttle. Pedal or throttle for greater acceleration and motor assistance. The displays real-time metrics and offers customizable riding modes for a personalized experience. Stay informed on your journey.
SPECIFICATIONS
Specifications
| Frame Size | Standard (mm) |
| Handlebar Height | 1206mm |
| Reach | 402mm |
| Head Tube Length | 140mm |
| Seat Tube Length | 17.8" |
| Standover Height | 705mm |
| Wheelbase | 1172mm |
| Total Length | 1922mm |
| Seat Height Min/Max | 819/1009mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range:up to 90 Miles by Pedal; 30 Miles by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
- Pedal Assist: 5 Levels
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim Material: Aluminum
- Rim Size: 26" 36H Front & Rear
- Front Wheel Spokes: 13G x 244/246mm, Black Stainless
- Rear Wheel Spokes: 12G x 217/219mm, Black Stainless
- Tubes: Butyl Rubber, Schrader Valve
- Hubs: Disc Nutted Front /Rear Axles
- Tire: Kenda Fat Tires
- Tire Size: 26" x 4.0"
E-system
- Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
- Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
- Motor: Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light, 30 LUX
Drivetrain
- Shifter: Shimano 7-Speed RevoShift
- Rear Derailleur: Shimano ARDTY500D 7-Speed, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: Shimano 14-28T, 7-Speed freewheel
- Pedal: Alloy Platform Pedals
- Chain: KMC 124 Link, 7-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4*350mm
- Seat Clamp: Ø35mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 70mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 720mm
- Headset: Sealed Bearing Headset
- Grips: Nylon Lock-on, Ergonomic Comfort
- Brake: Front & Rear Hydralic Disc Brakes, with180mm discs, with power-cut-off function
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand, Alloy, Rear Mount
- Fenders: Plastic 26"x110mm
- Rear Rack: Aluminum Alloy Rear Rack
Weight
- Net Weight:34.9kg (76.94lb) ( including battery)
- Gross Weight:45.6kg (100.53lb)
- Battery Weight: 4kg (8.82lb)
- Weight limit:136 kg (300 lb) Payload Capacity
Size
- Product Size:1930x740x1210mm
- Packing Size: 1570x330x900mm
