HIGHLIGHTS

• MOTOR: 750W BAFANG Geared Hub Motor Peak 1000W, Max Torque 80NM

• BATTERY: 48V 15Ah Lithium-Ion Battery, 750Wh, LG cells

• DERAILLEUR: Shimano 7-Speed Drivetrain

• FRAME MATERIAL: 6061 Aluminum with integrated down tube battery

• FORK: Front Hydraulic Suspension Fork

• TIRE: Kenda 26"*4.0" Fat Tires

• BRAKE: Front & Rear Hydraulic Disc Brakes

• Standover Height: 26.4''

• Wheelbase: 44.5''

• Recommended Height: 5'2" - 6"

• Weight: 79.3 lbs w/ battery

• Load Capacity: 330 lbs max

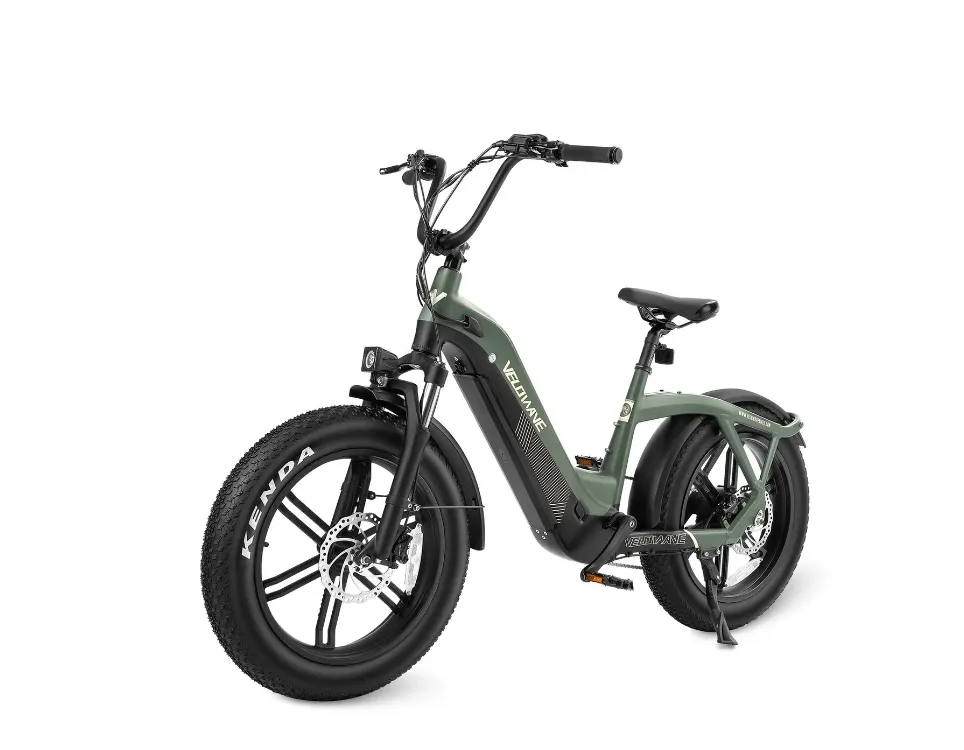

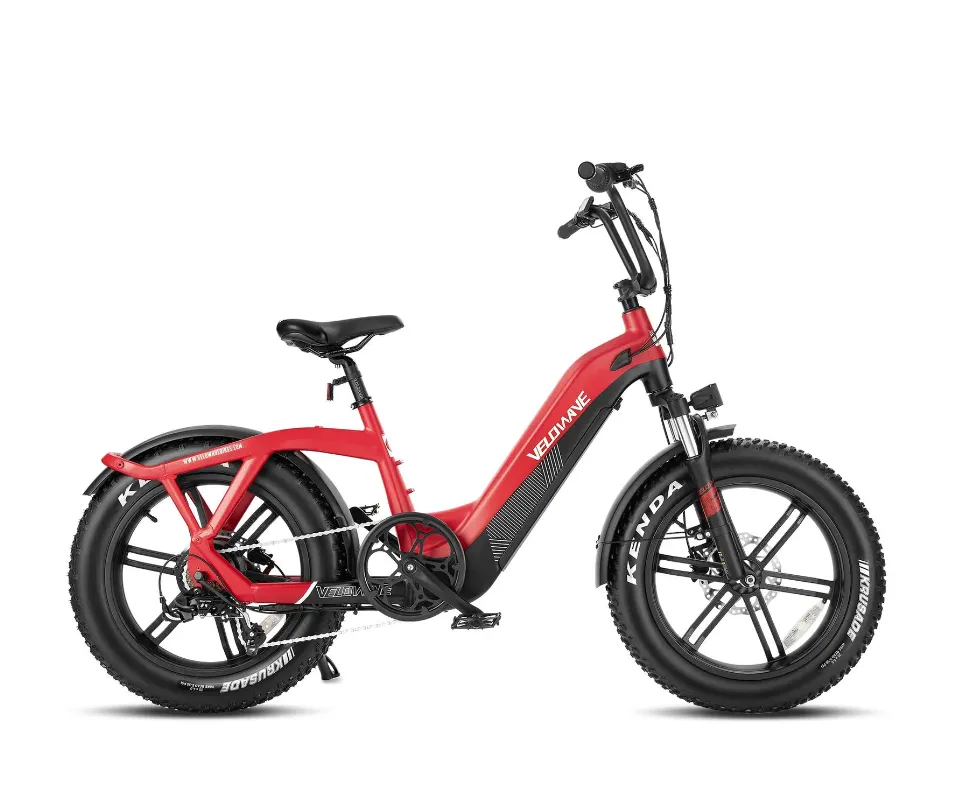

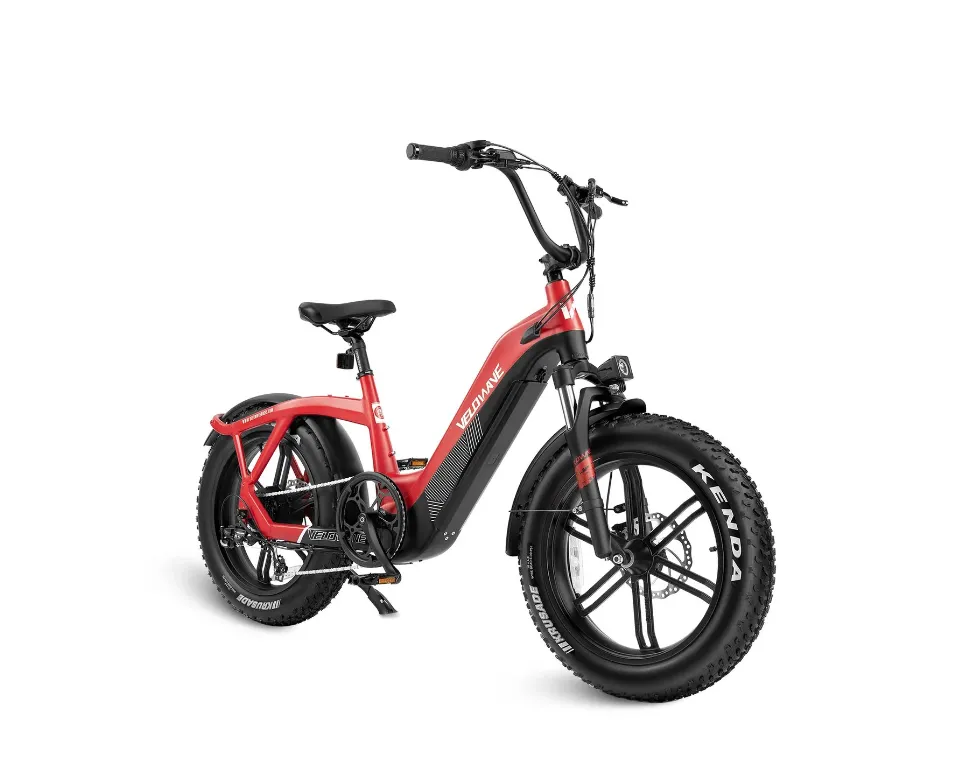

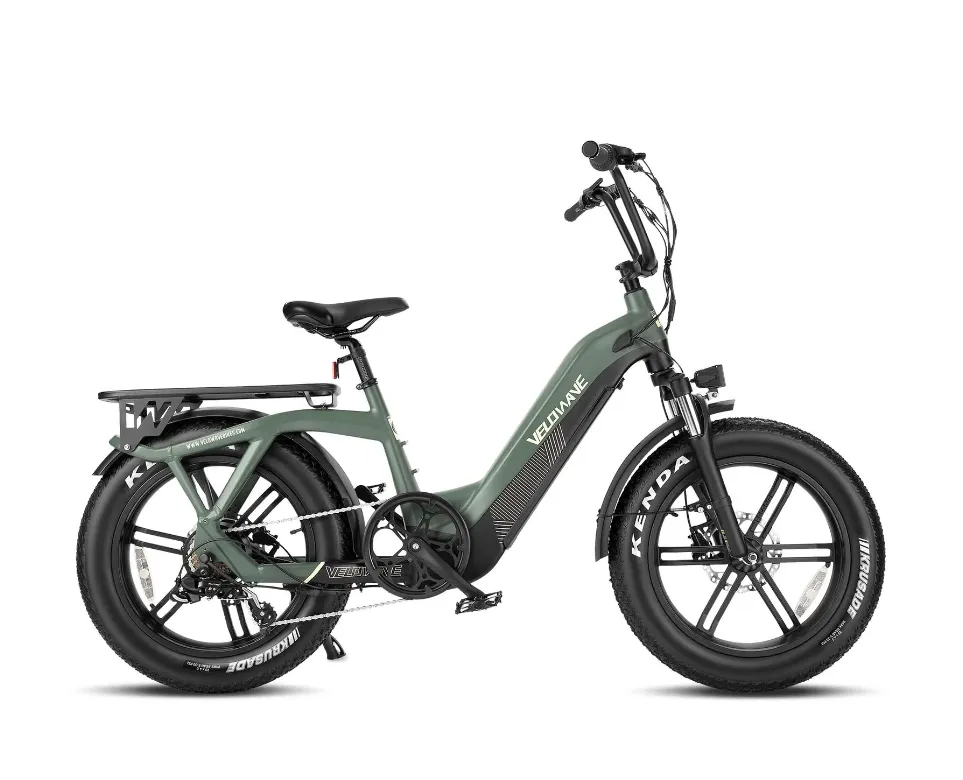

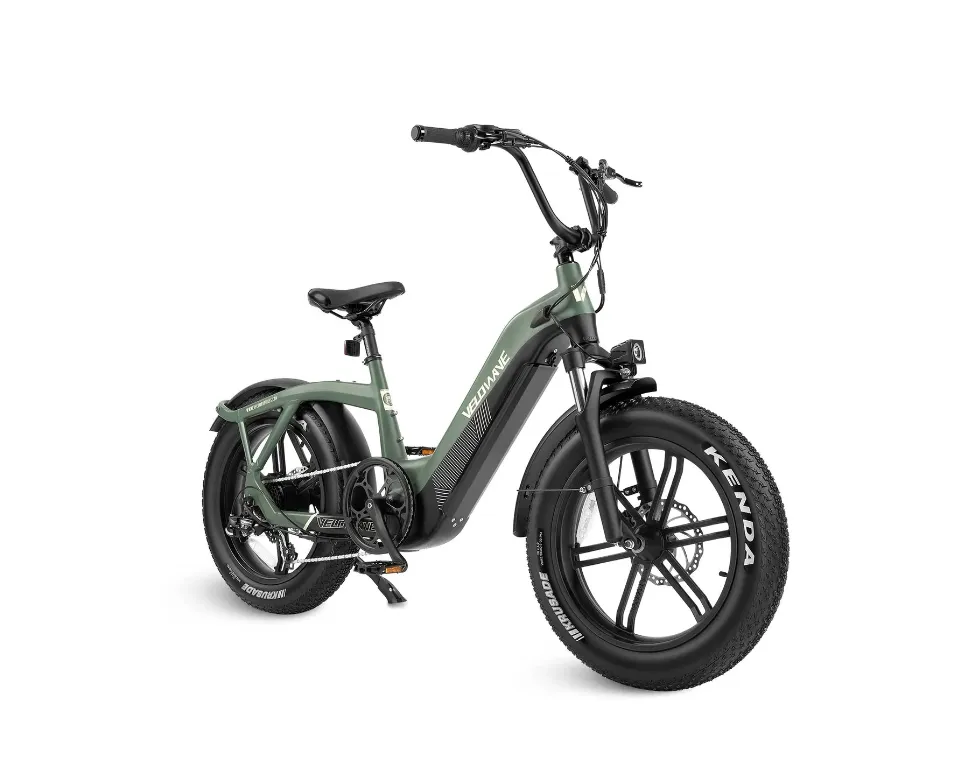

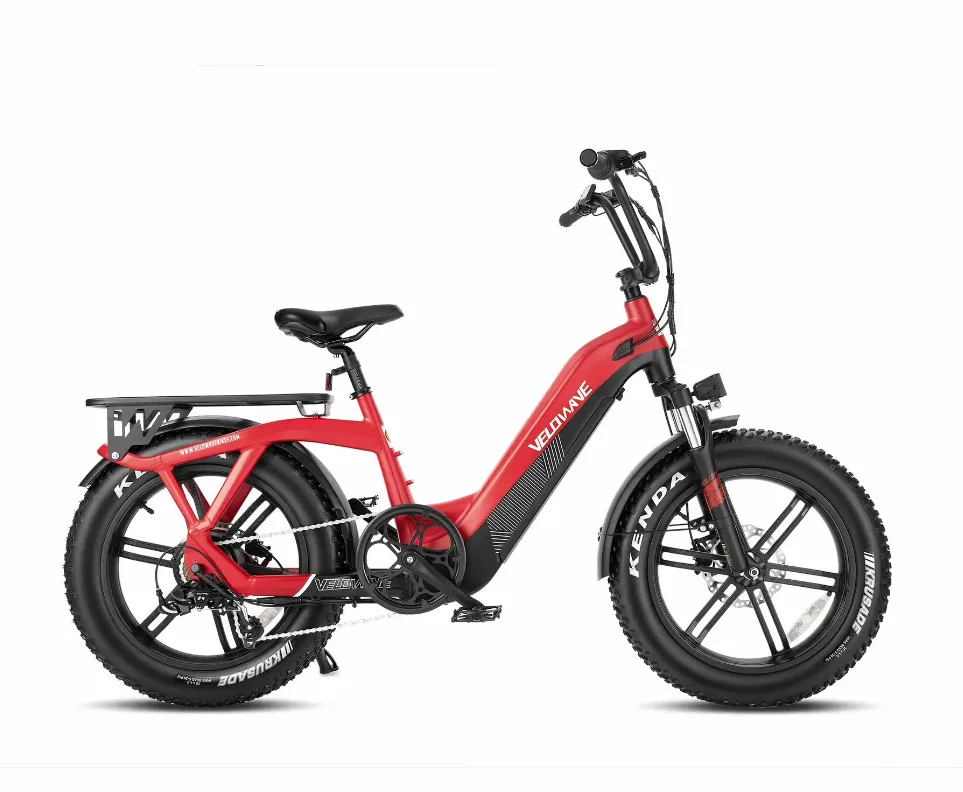

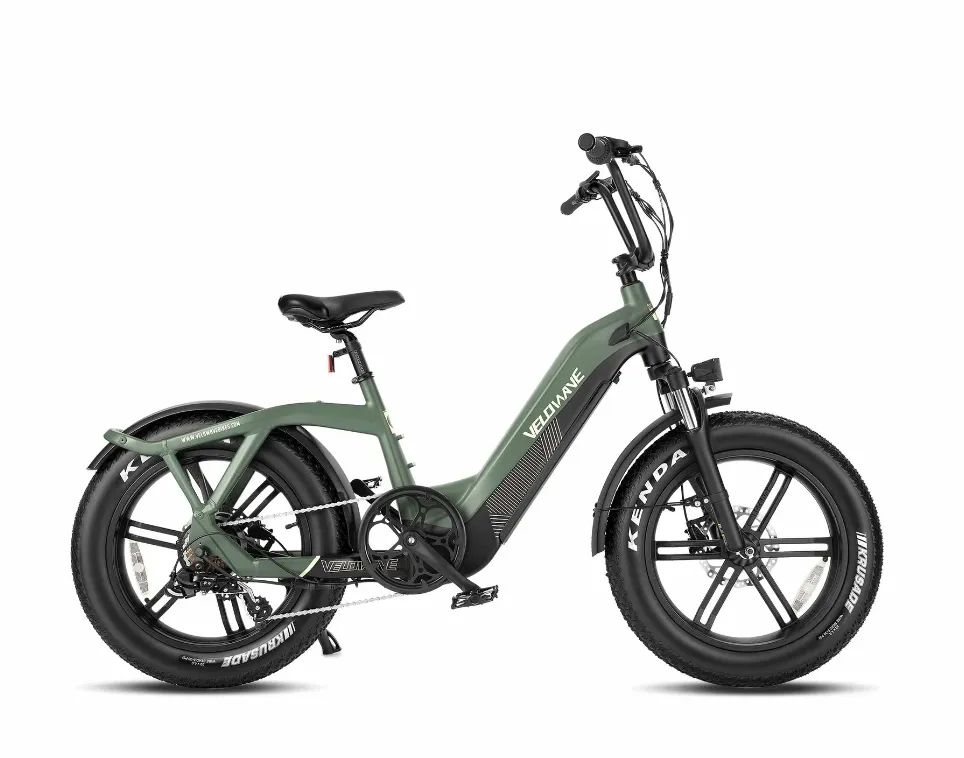

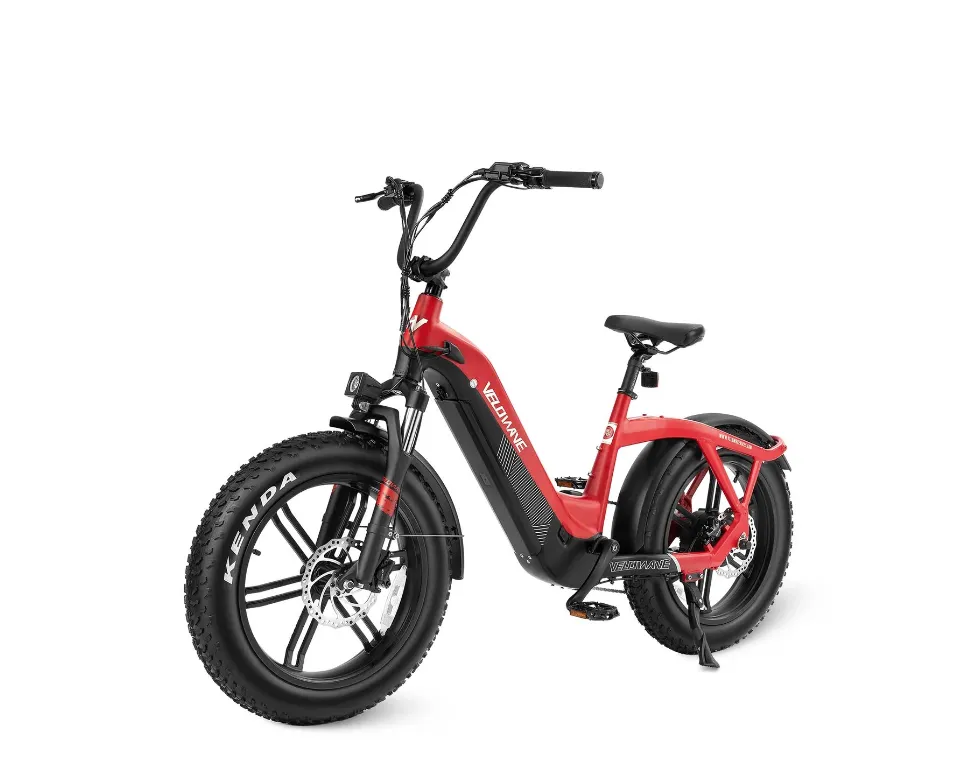

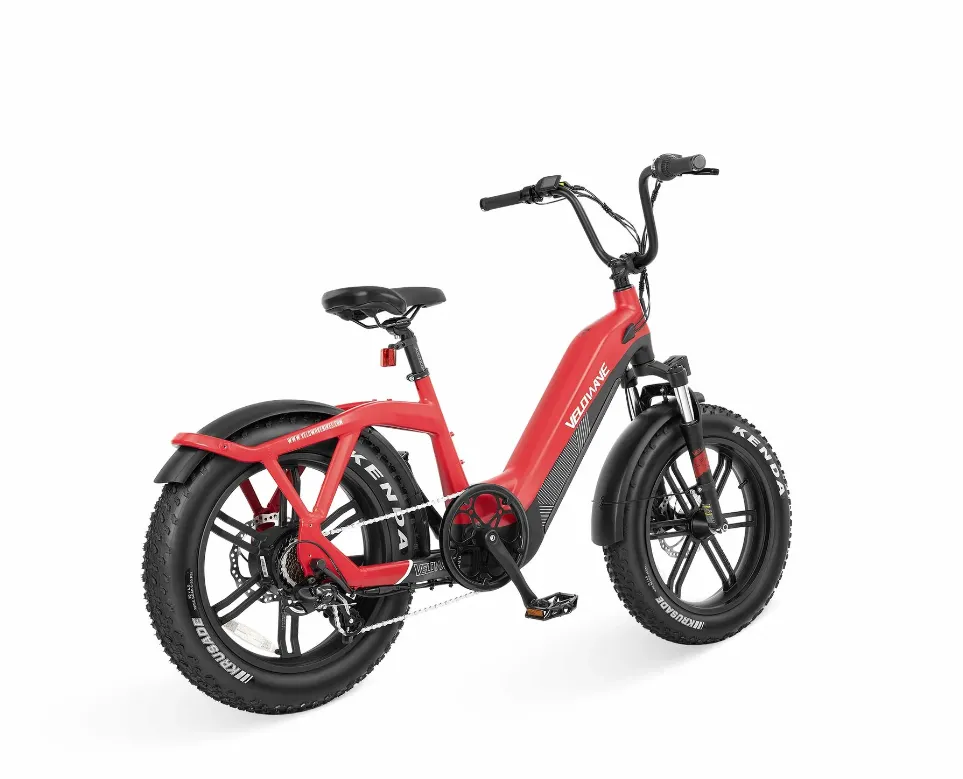

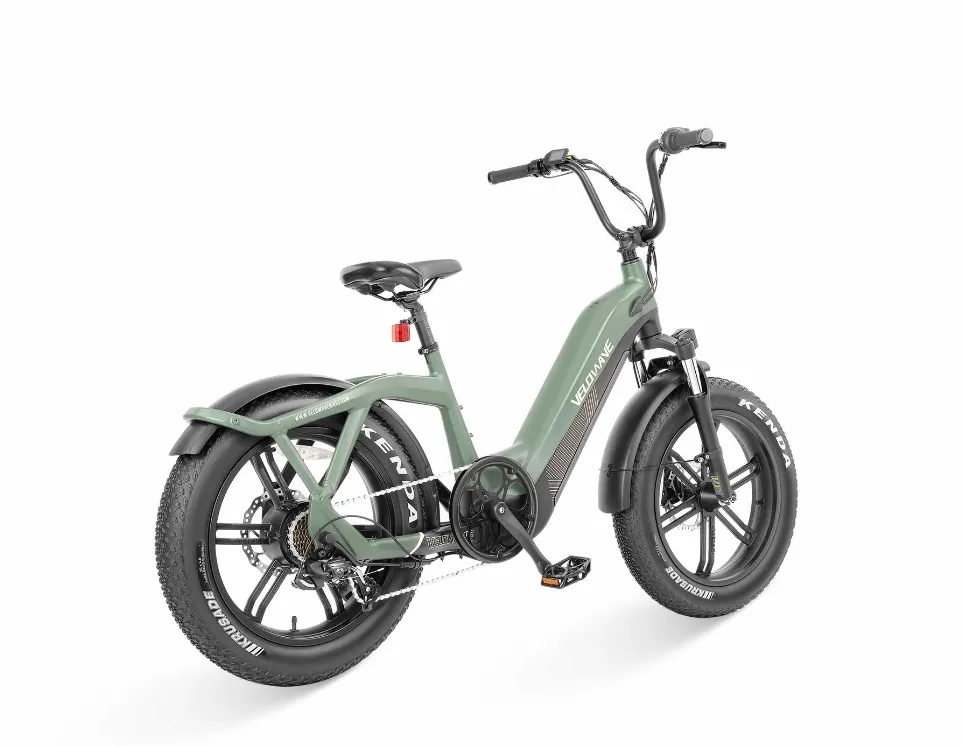

Pony Step Thru Electric Bike By VELOWAVE

SPECIFICATIONS

MOTOR: 750W BAFANG Geared Hub Motor Peak 1000W, Max Torque 80NM
THROTTLE: Thumb Throttle on the left
DISPLAY: Multifunctional Color-Screen Display
BATTERY: 48V 15Ah Lithium-Ion Battery, 750Wh, LG cells
Sensor: Cadence sensor
REAR DERAILLEUR: Shimano 7-Speed Drivetrain
CHARGER: 48V 2Amp, Fast Charger, 4 Hrs to 80% & 8 Hrs Full Charge
RANGE: 40 Miles by Pedal, 25 Miles by Throttle
FRAME: 6061 Aluminum with Integrated down tube battery
WEIGHT: 79.3 LBS
PEDALS: Platform Pedals
WEIGHT LIMIT: 330 LBS Payload Capacity
FORK: Front Hydraulic Suspension Fork
BRAKES: Front & Rear Hydraulic Disc Brakes
SHIFT LEVER: 7 Speed Trigger
CHAIN: 7 Speed
Tires: Kenda 20"*4.0" Fat Tires
Saddle: Comfortable Wide Saddle
Crank Set: 52T, 170mm Alloy Crank
Kickstand: Side kickstand
Controller: 48V 25Amp peak
Front Light: 48V 10W LED Light
Battery Weight: 9.3 LBS
Top Speed: 20 mph

SIZING

Seat Post Length: 13.7''
Total Length: 67.5''
Head Tube Length: 6.8''
Seat Tube Angle: 71°
Handlebar Height: 44.5''
Head Tube Angel: 71°
Bottom Bracket Height: 11.5'' Chainstay Length: 16.7''
Front-Center: 27.8''
Wheelbase: 44.5''
Standover Height: 26.4''
Reach: 17.3''
Seat Height: Min 30.5''- Max 39.0''
Recommended Height: 5'2'' to 6'2''
