HIGHLIGHTS

• MOTOR: 750W BAFANG Geared Hub Motor Peak 1000W, Max Torque 80NM

• BATTERY: 48V 20Ah Lithium-Ion Battery, 960Wh, LG cells

• DERAILLEUR: Shimano 8-Speed Drivetrain

• FRAME MATERIAL: 6061 Aluminum with integrated down tube battery

• FORK: Front Hydraulic Suspension Fork

• TIRE: Kenda 26"*4.0" Fat Tires

• BRAKE: Front & Rear Hydraulic Disc Brakes

• Standover Height: 30.6''

• Wheelbase: 48.7''

• Recommended Height: 5'6" - 6'2"

• Weight: 80 lbs w/ battery

• Load Capacity: 330 lbs max

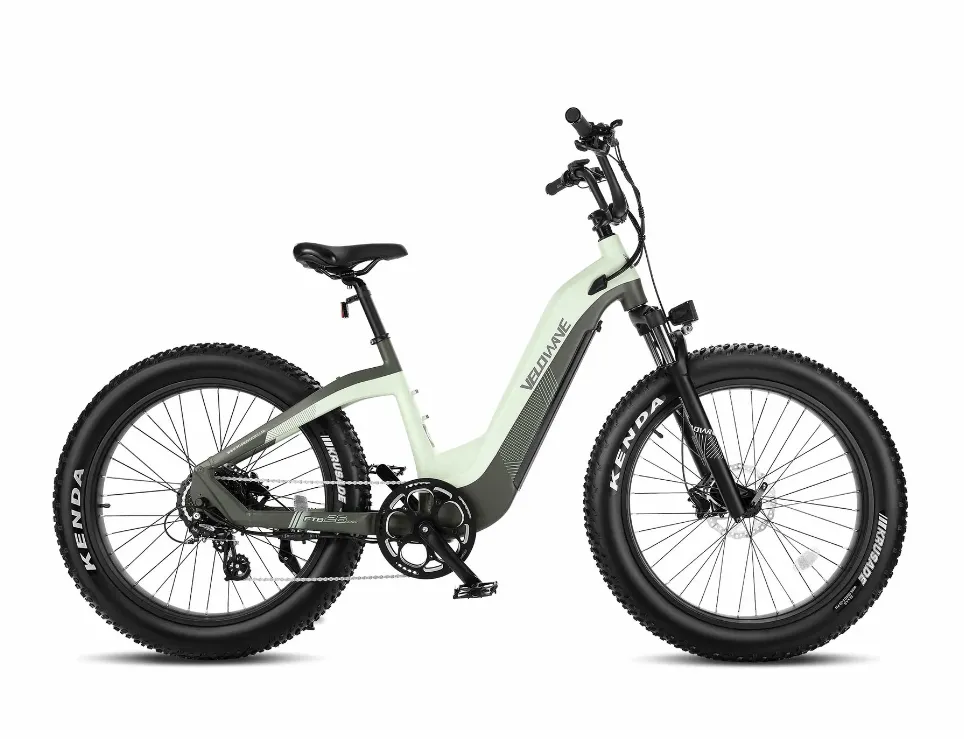

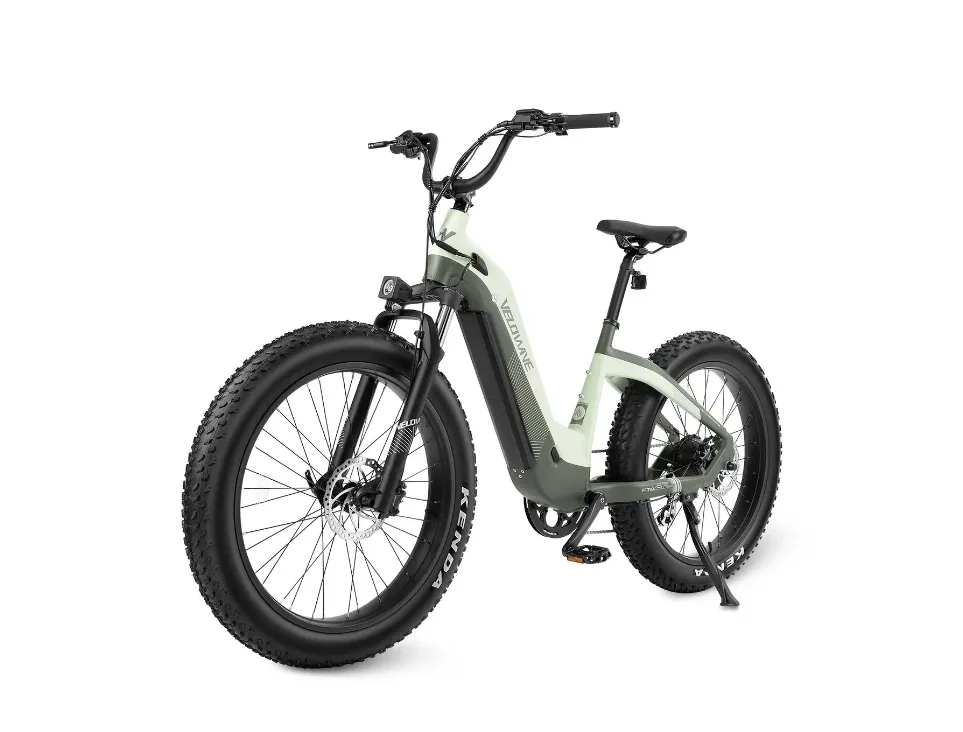

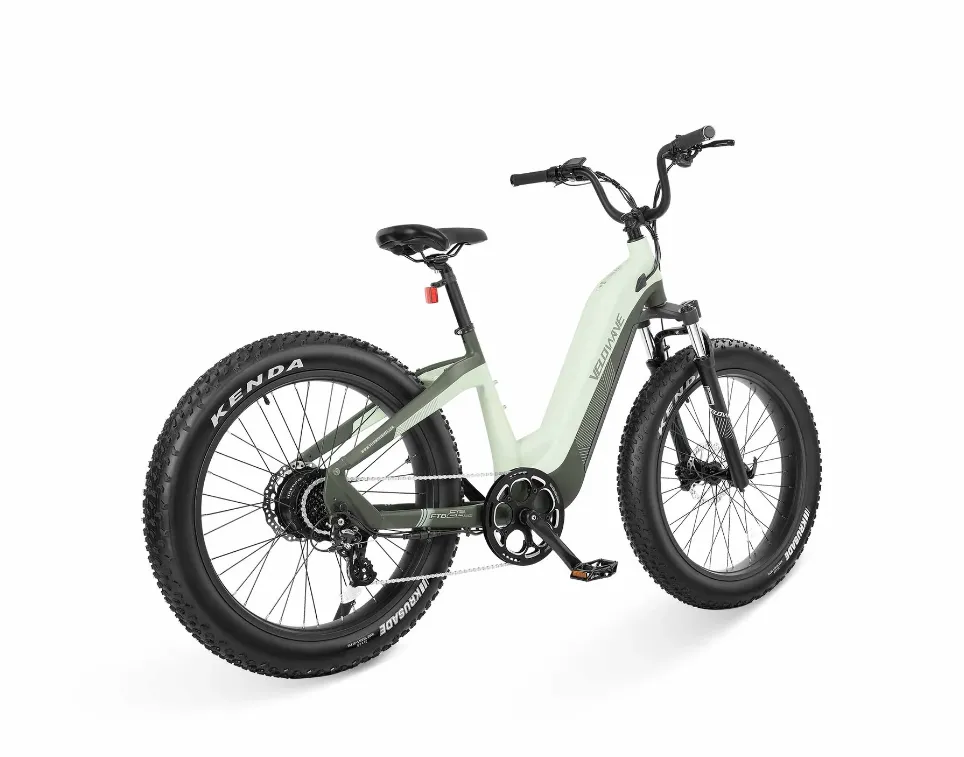

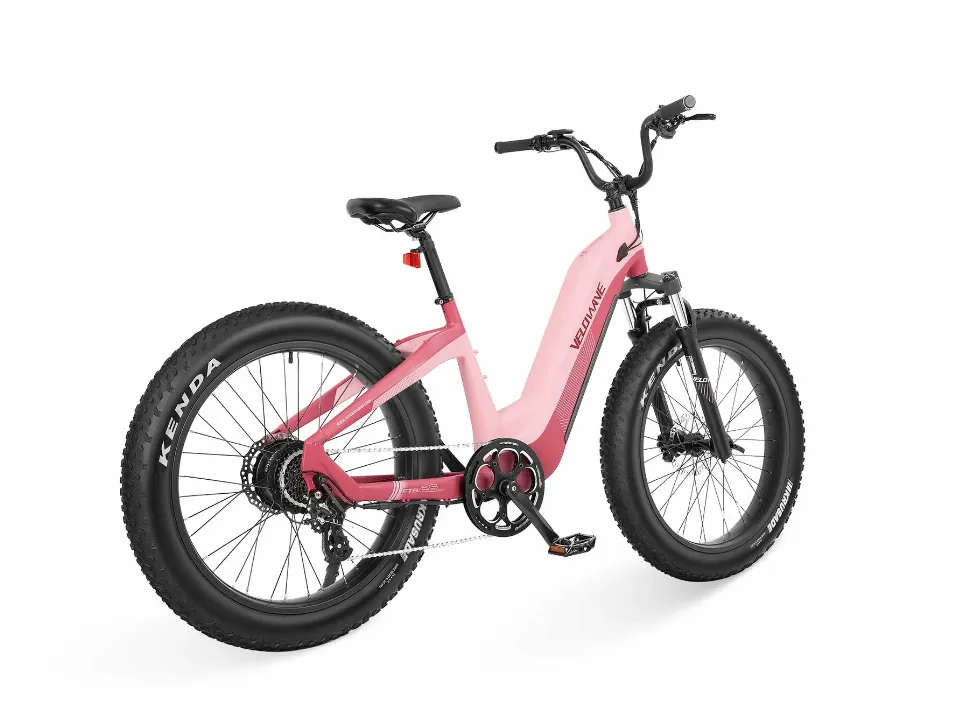

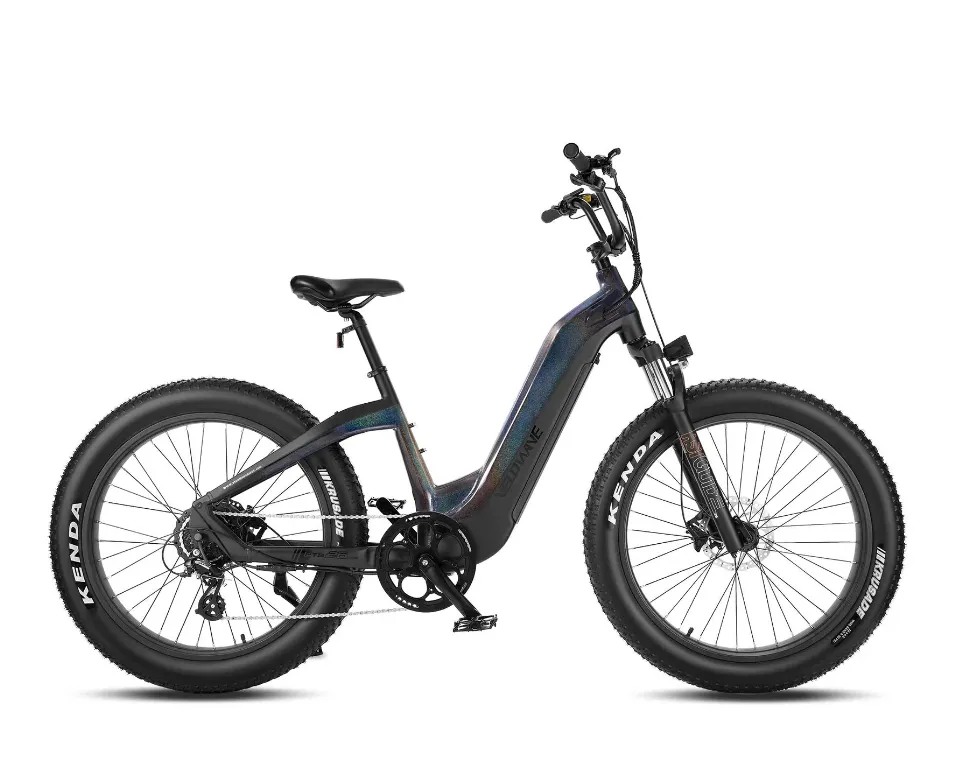

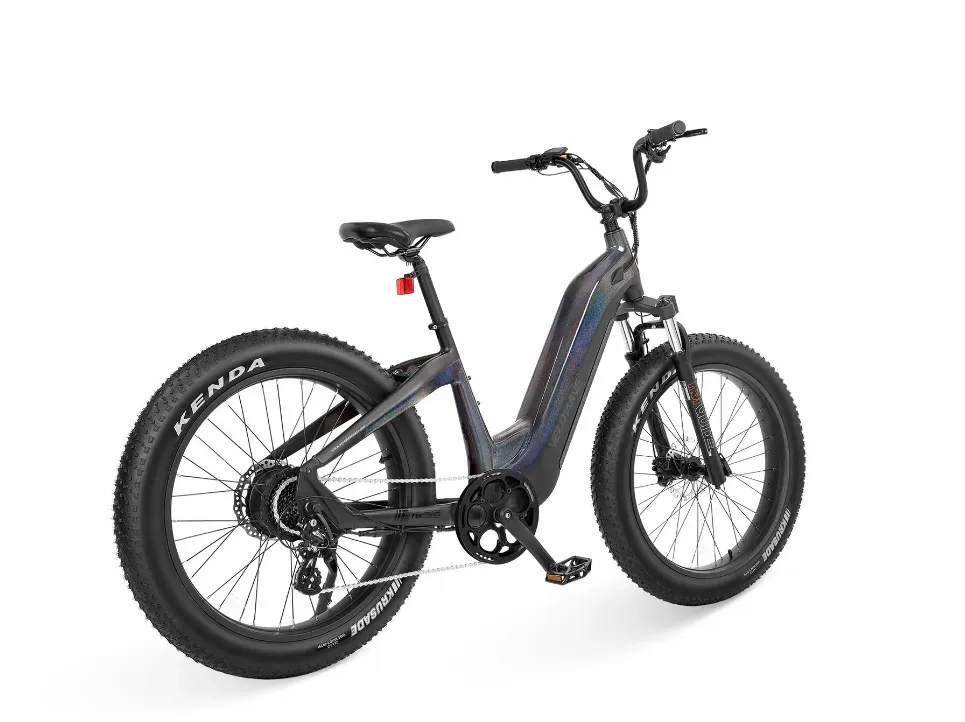

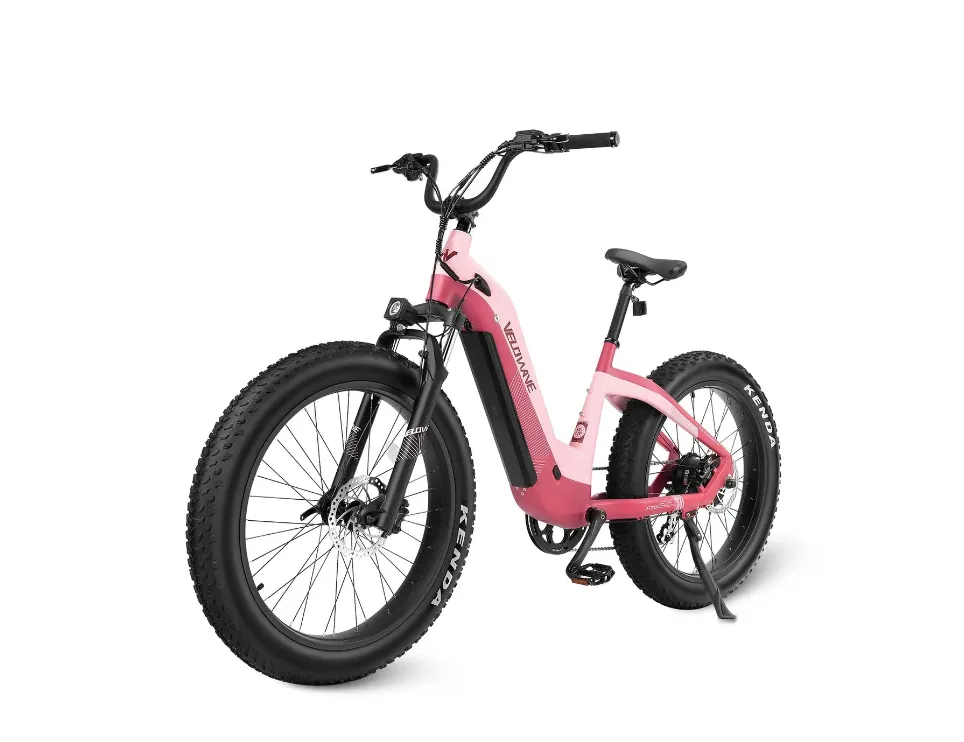

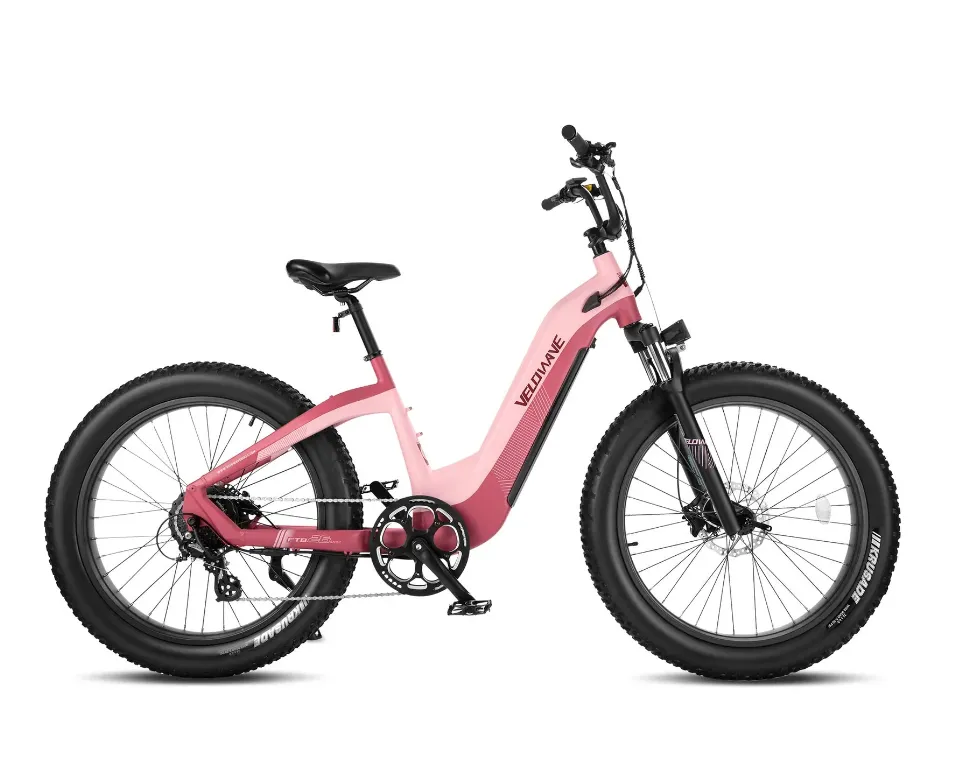

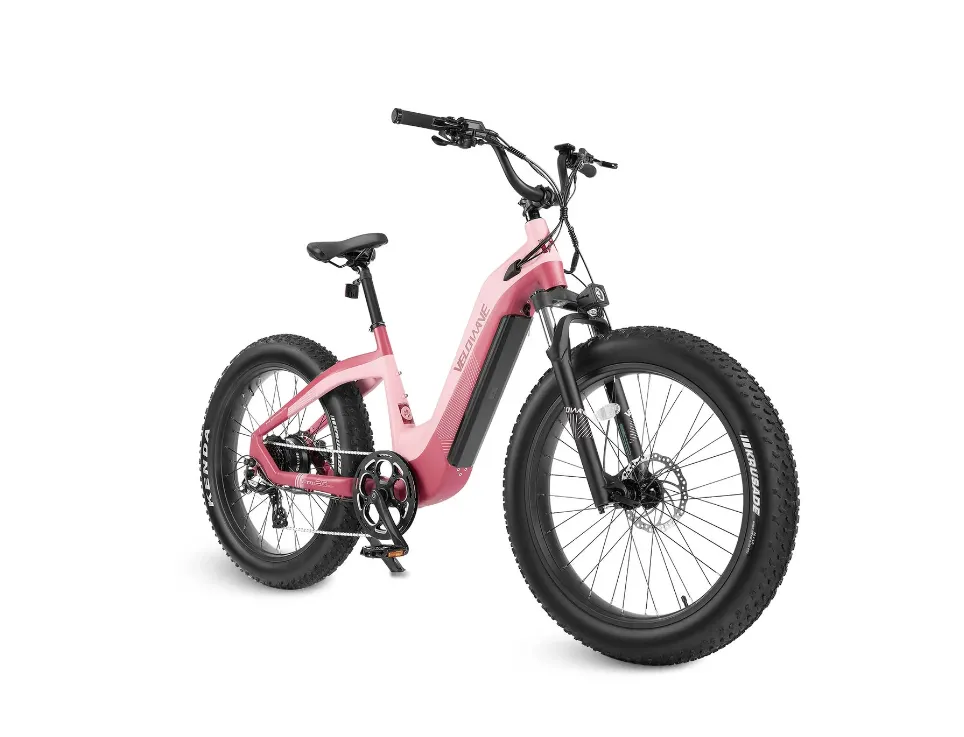

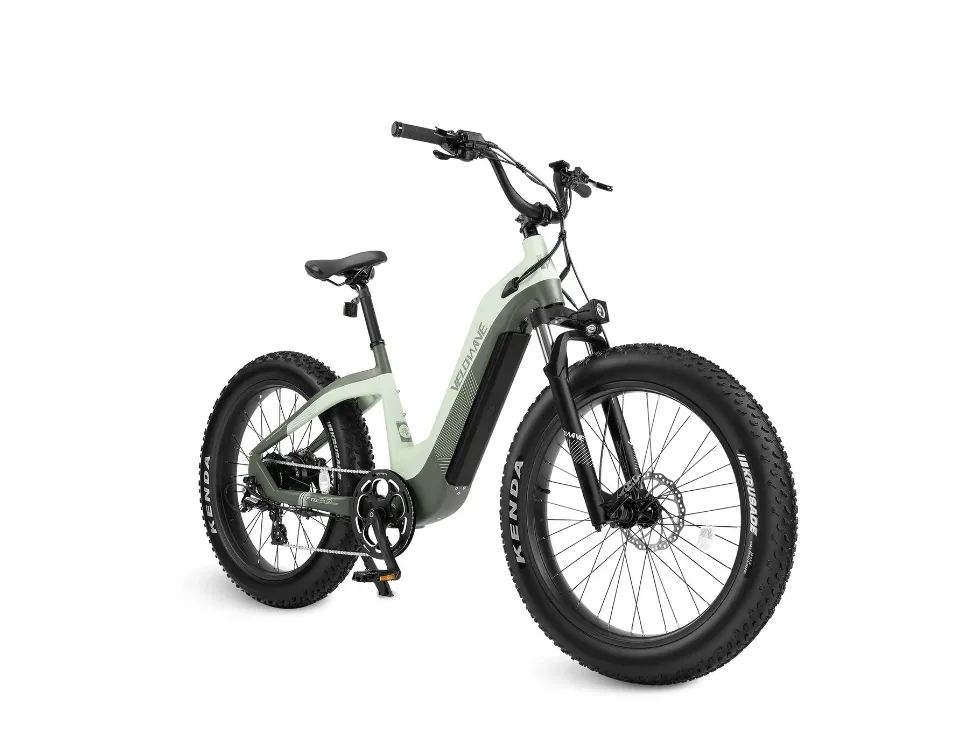

Grace 2.0 Step Thru Electric Bike By VELOWAVE

SPECIFICATIONS

MOTOR: 750W BAFANG Geared Hub Motor Peak 1000W, Max Torque 80NM
THROTTLE: Thumb Throttle on the left
DISPLAY: Multifunctional Color-Screen Display
BATTERY: 48V 20Ah Lithium-Ion Battery, 960Wh, LG cells
SENSORS: Torque Sensor
REAR DERAILLEUR: Shimano 8-Speed Drivetrain
CHARGER: 48V 2Amp, Fast Charger, 4 Hrs to 80% & 8 Hrs Full Charge
RANGE: 65 Miles by Pedal, 40 Miles by Throttle
FRAME: 6061 Aluminum with Integrated down tube battery
WEIGHT: 80 LBS
PEDALS: Platform Pedals
WEIGHT LIMIT: 330 LBS Payload Capacity
FORK: Front Hydraulic Suspension Fork
BRAKES: Front & Rear Hydraulic Disc Brakes
SHIFT LEVER: 8 Speed Trigger
CHAIN: 8 Speed
Tires: Kenda 26"*4.0" Fat Tires
Saddle: Comfortable Wide Saddle
Crank Set: 52T, 170mm Alloy Crank
Kickstand: Side kickstand
Controller: 48V 25Amp peak
Front Light: 48V 10W LED Light
Battery Weight: 11 LBS
Top Speed: 20 mph

SIZING

Seat Post Length: 17.7''
Total Length: 78.2''
Head Tube Length: 6.9''
Seat Tube Angle: 70°
Handlebar Height: 48.5''
Head Tube Angel: 14.8''
Chainstay Length: 20''
Front-Center: 28.9''
Wheelbase: 48.7''
Standover Height: 30.6''
Reach: 15.6''
Seat Height: Min 34.2''- Max 42.7''
Recommended Height: 5'6'' to 6'2''
Bottom Bracket Height: 14.8''
