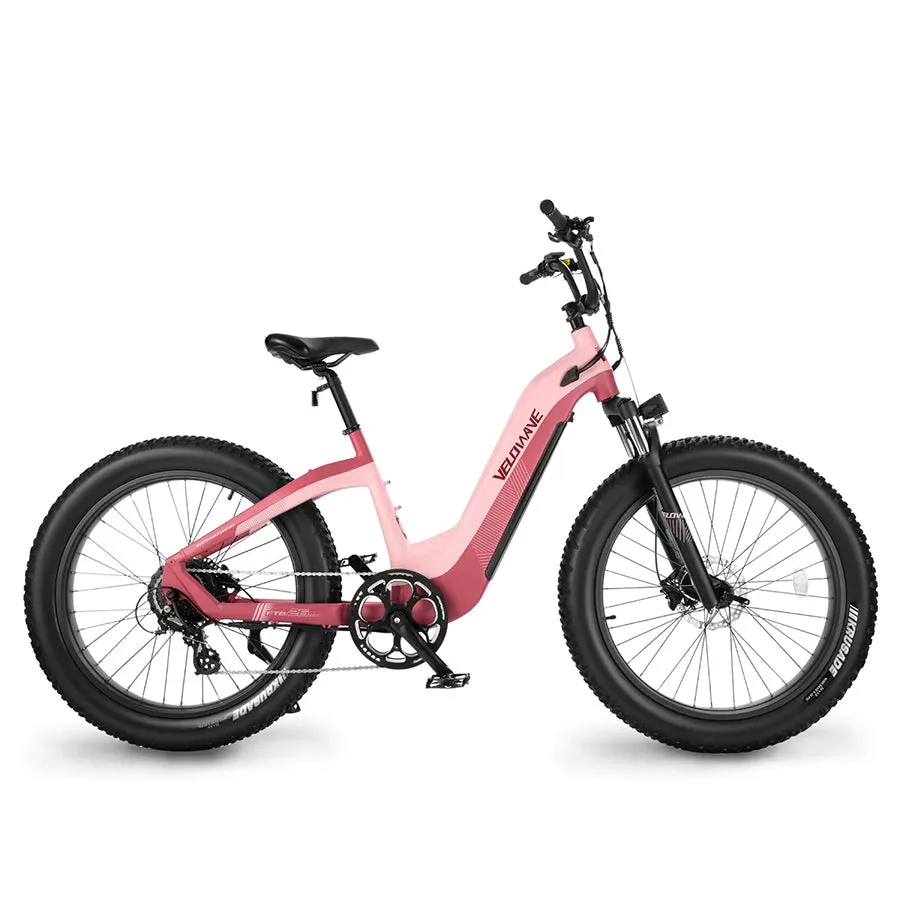

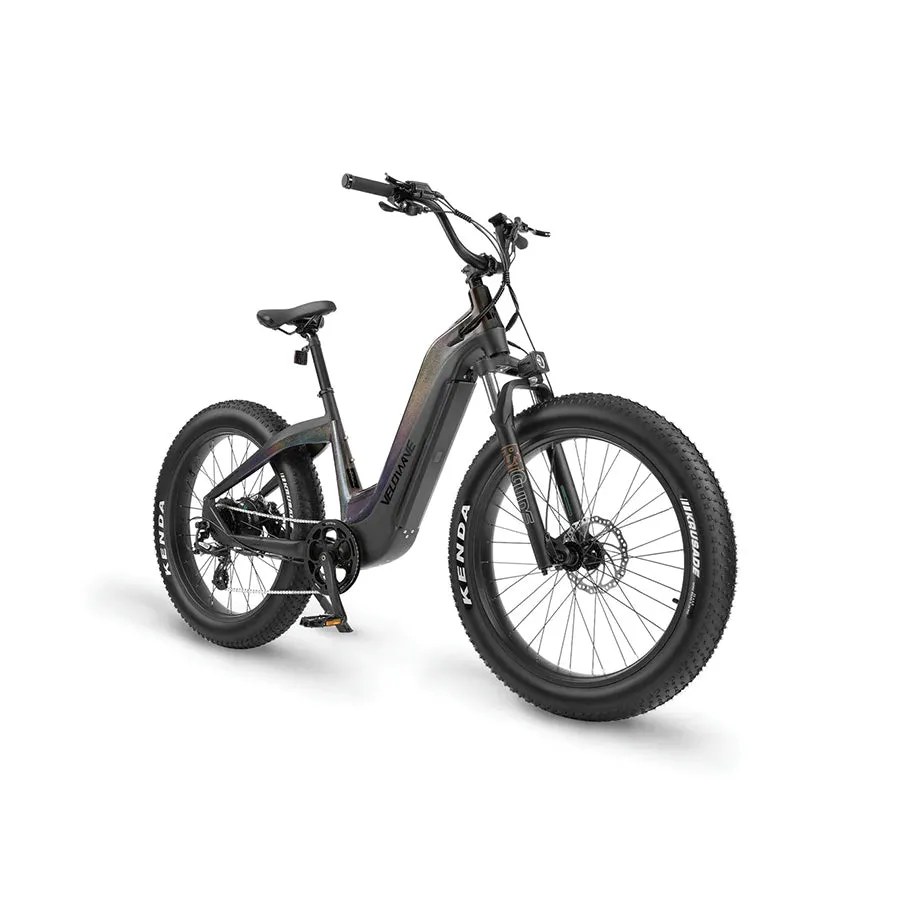

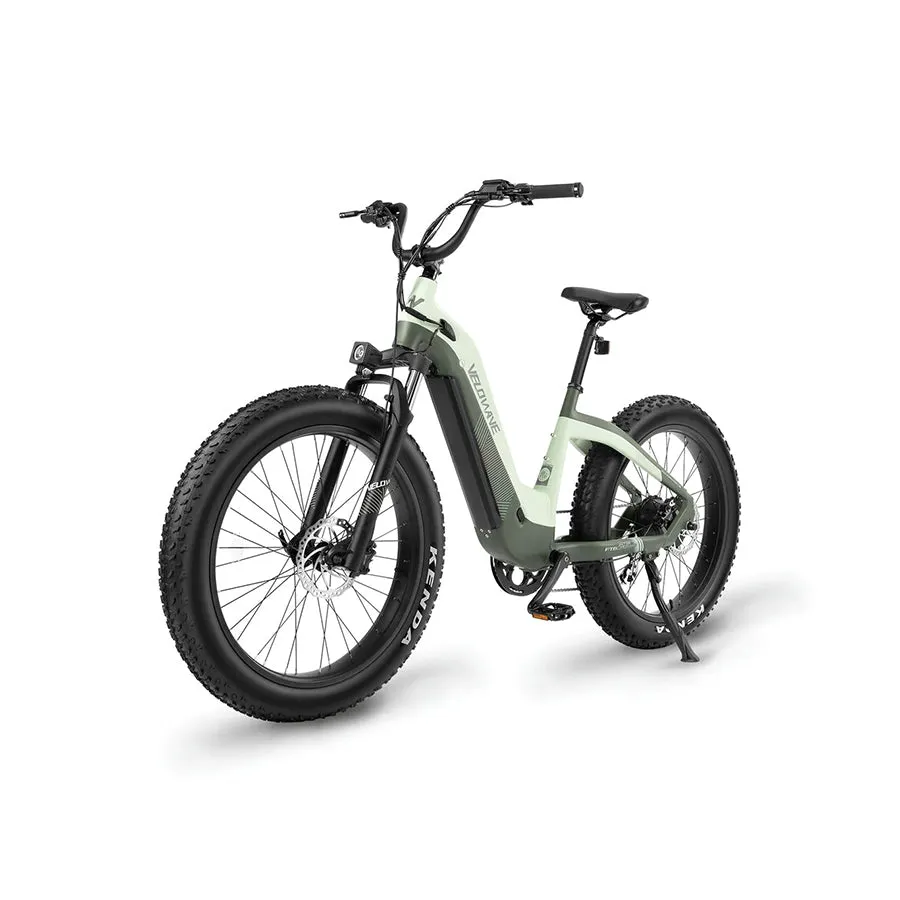

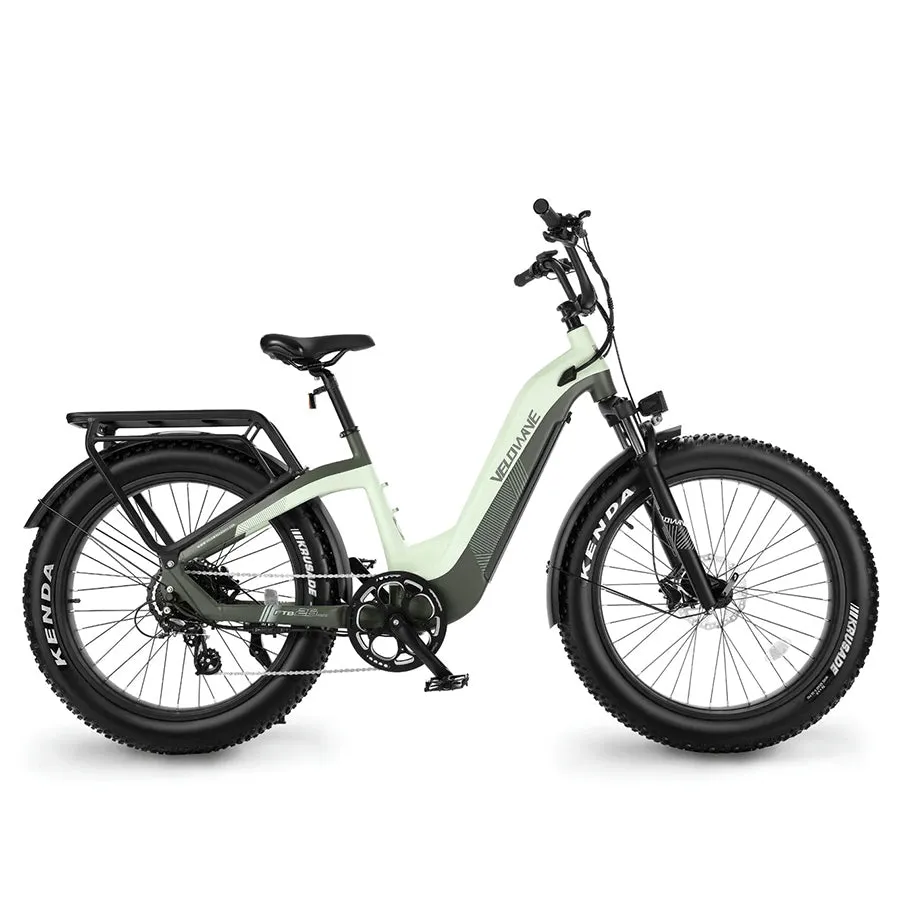

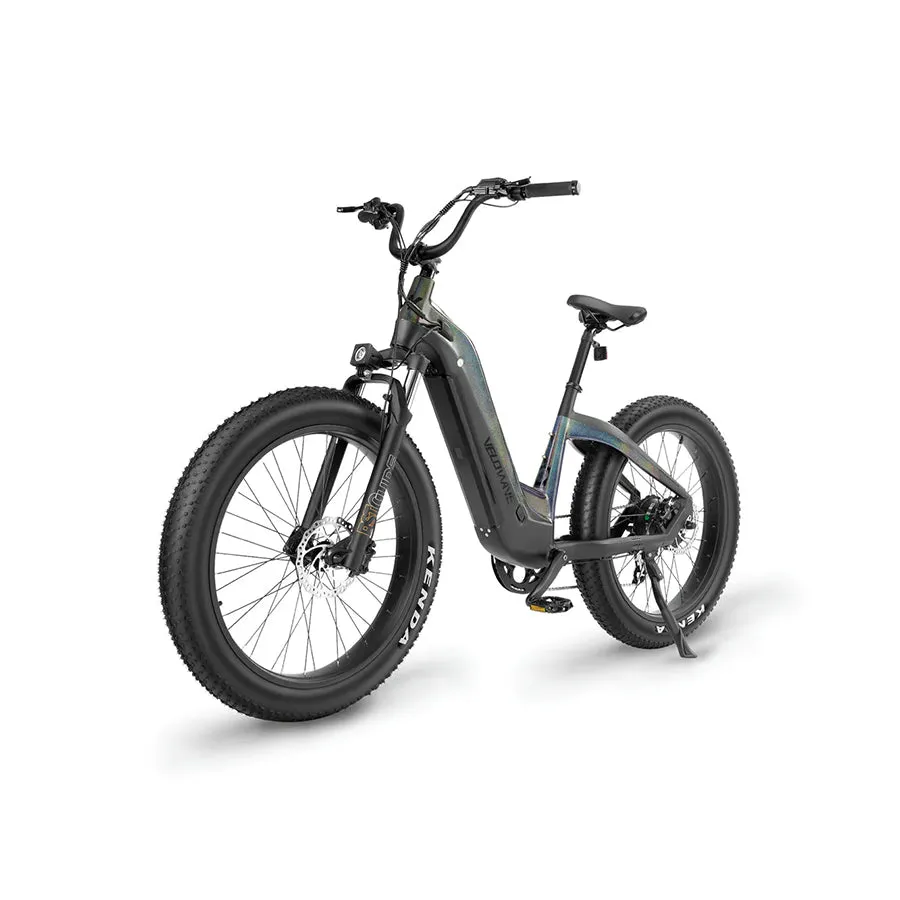

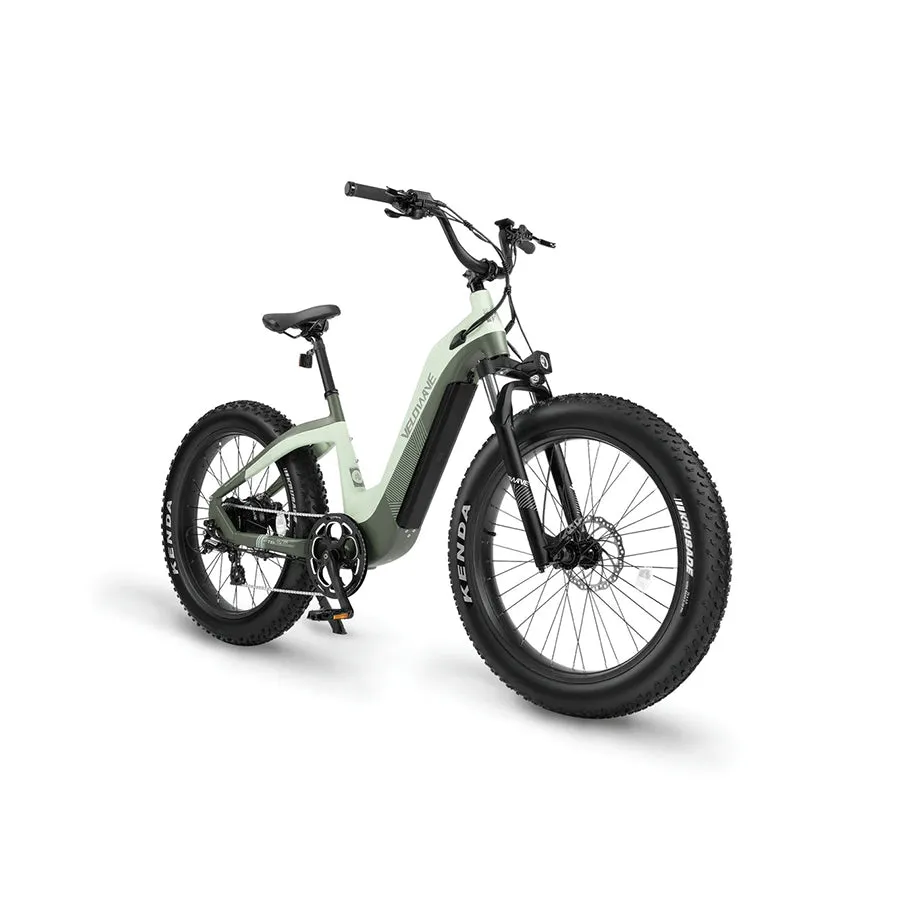

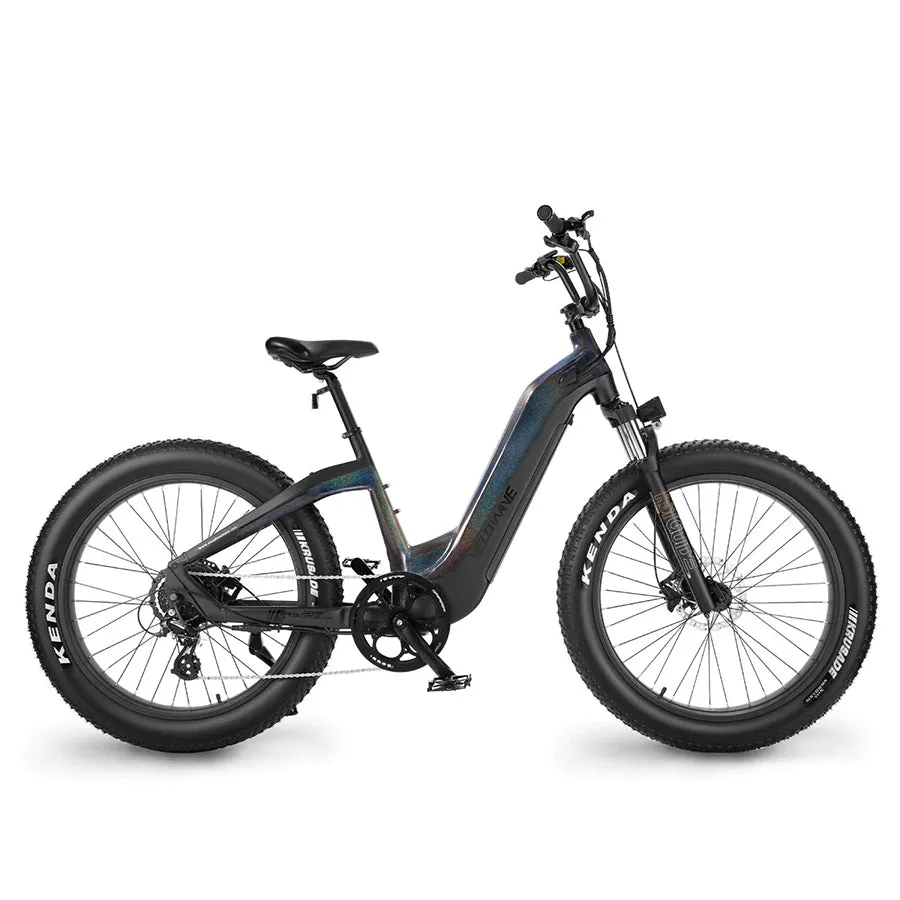

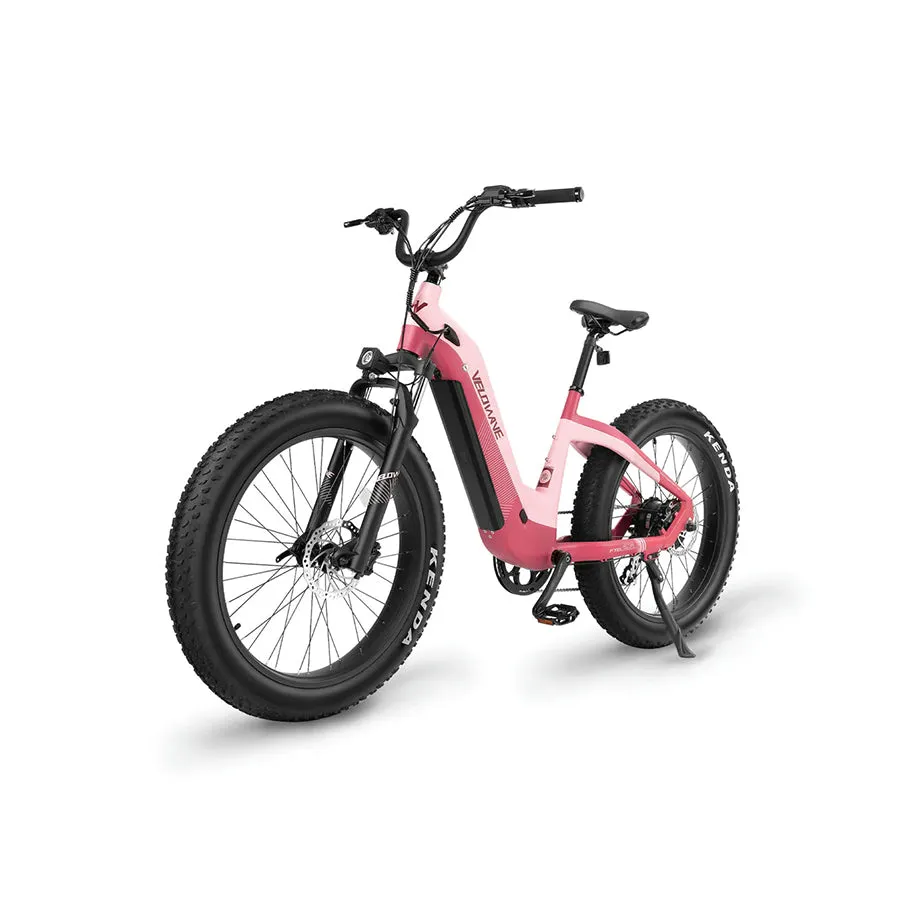

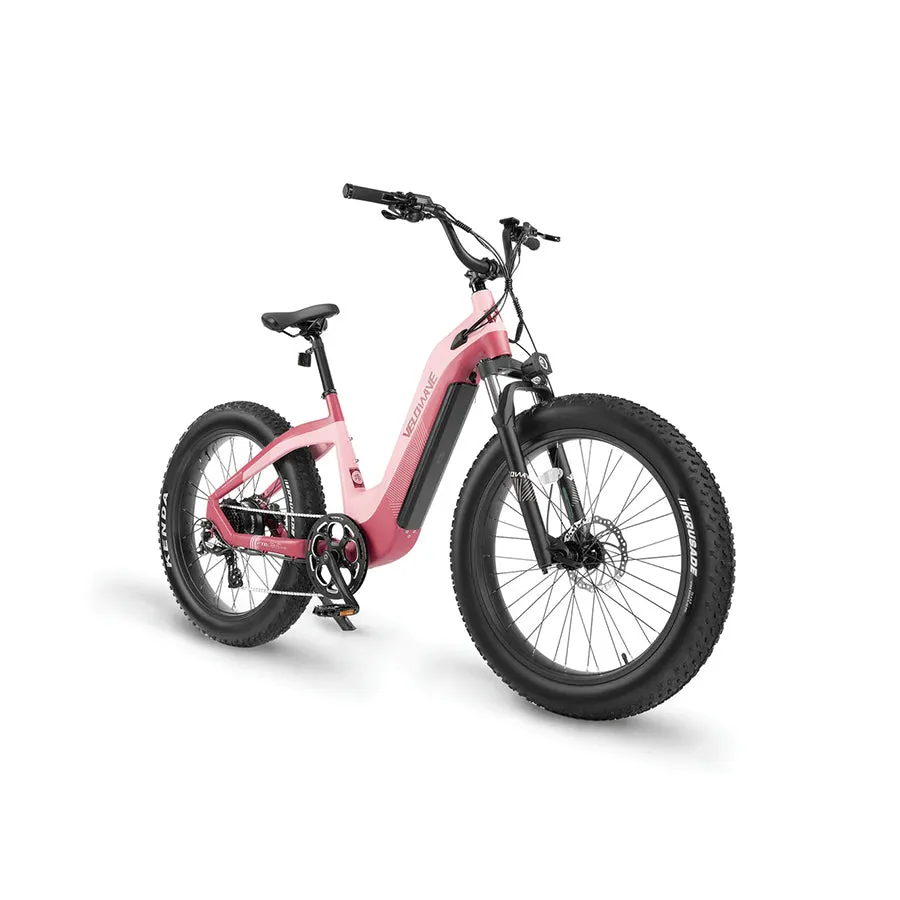

Name: Velowave Grace 2.0 - Step-Through All-Terrain Fat Tire Electric Bike - Top Speed 28mph - 750W
SKU: 151390

Velowave Grace 2.0

Step-Through All-Terrain Fat Tire Electric Bike - Top Speed 28mph - 750W

Grace 2.0

Prepare to dominate any landscape with Velowave's premier model - the fat-tire off-road E-Bike. Engineered with robust fat tires providing both puncture resistance and stability, this E-Bike is crafted to conquer the toughest trails. Embrace the exhilaration of riding with the formidable combination of a powerful 750W BAFANG motor and a 48V 20Ah LG battery on this state-of-the-art E-Bike!

28 MPH

TOP SPEED

750W

MOTOR POWER

48V 20AH

Removable Battery

4.0" Tires

TIRES

5’5" - 6’5"

Rider Height

330lbs

PAYLOAD CAPACITY

Torque Sensor

Equipped with a torque sensor to sense the force put into the pedals is a significant improvement, achieving low latency, accuracy, and maintenance-free. This improves the bike's handling, making it much more intuitive and enjoyable to ride, and safer.

750W BAFANG Powerful Motor

750W high-speed BAFANG geared motor, Strong and powerful, providing strong electric power, and making it stable to reach speed peaks. You can cruise in the wild with little to no effort.

Removable 48V 20Ah LG Battery

Equipped with a 48V/20AH lithium battery and LG battery, it can travel more than 40-65 miles per full charge. The detachable waterproof battery supports fast charging, which can be charged to about 80% in 4 hours and fully charged in 8 hours.

Front Hydraulic Suspension Fork

Make the ride more stable, more comfortable, and easier to control. It avoids excessive
vibrations that could cause hands to leave the handlebars for increased safety.

Front Hydraulic Suspension Fork

Make the ride more stable, more comfortable, and easier to control. It avoids excessive vibrations that could cause hands to leave the handlebars for increased safety.

All Terrains Kenda Fat Tire

Kenda 26"*4.0" Fat Tire, non-slip, wear-resistant, suitable for snow, sand, and various terrains. Fat tires provide a smooth ride over rough terrain.

Shimano 7-Speed Drivetrain

The Shimano 7-speed drivetrain offers smooth shifting to help you adjust your riding speed for different sections and conditions.

High-luminance Headlight

The bright 48V 10W LED Light provides a safer and more enjoyable environment for night riding. Easy riding day and night.

Multifunctional Color Display

Provides assist level, battery indicator, ride speed, and mileage data. The front and rear hydraulic disc.

Comfortable Wide Saddle

We focus on details, and for a more comfortable riding experience, we choose a widened and enlarged comfortable seat pad.

SPECIFICATIONS

Specifications

Frame Size	Standard (mm)
Handlebar Height	1233mm
Reach	395mm
Head Tube Length	174mm
Seat Tube Length	449mm
Standover Height	375mm
Wheelbase	1237mm
Total Length	1987mm
Seat Height Min/Max	870/1085mm

General

Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
Max Speed: 28MPH by pedal, 20MPH by throttle
Range:60 Mile by Pedal; 40 Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)

Frameset

Frame: 6061 Aluminium, Removable Battery, Internal Routing
Fork: Hydralic Suspension Fork

Wheels

Rim Material: Aluminum
Rim Size: 26 x 3.0
Front Wheel Spokes: 13K x 243
Rear Wheel Spokes: 12K x 198
Tire: Kenda Fat Tires
Tire Size: 26" x 4.0"

E-system

Battery:48V 20Ah, 960Wh, LG 21700 Cells
Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
Motor:BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
Controller: 48V 25A Peak
Display: Multifunctional Color-Screen Display
Pedal Assist:Torque Sensor
Throttle: Thumb Throttle
Front Light: 48V 10W LED Light
