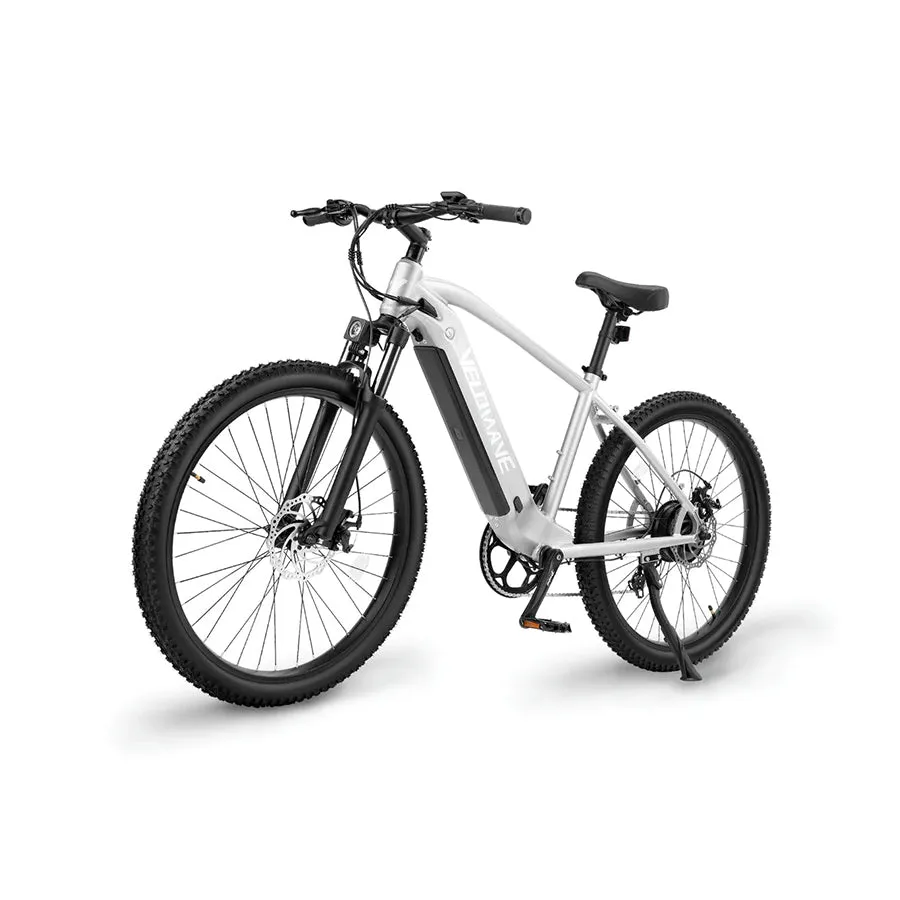

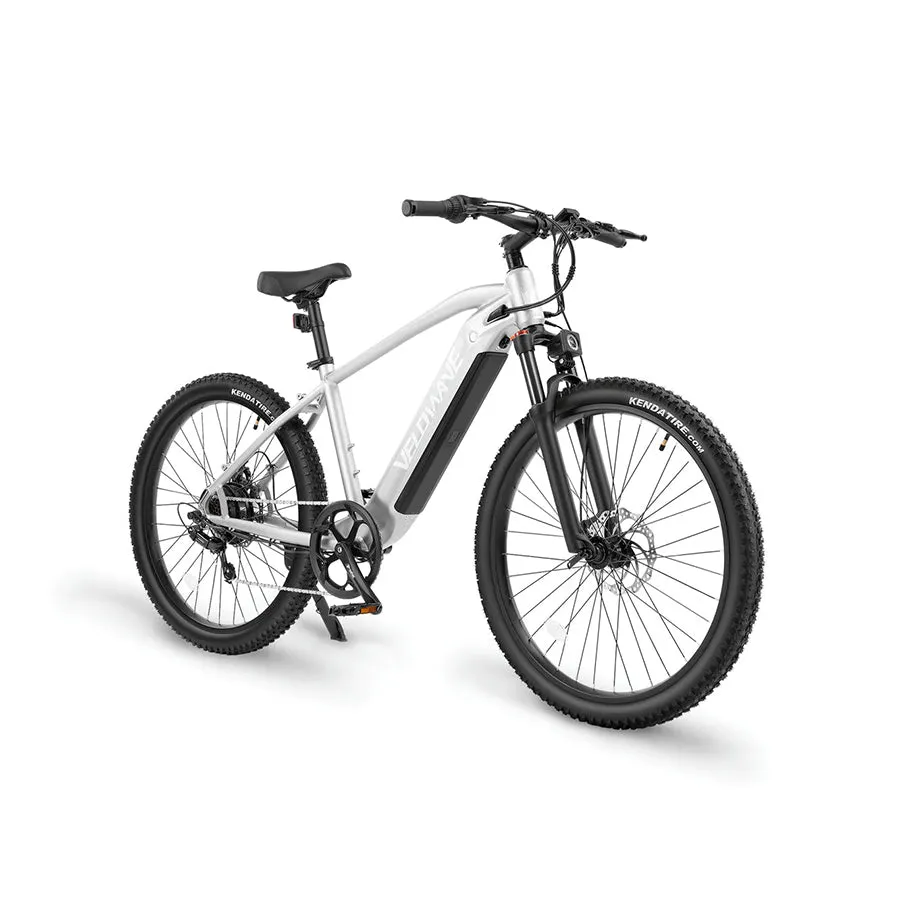

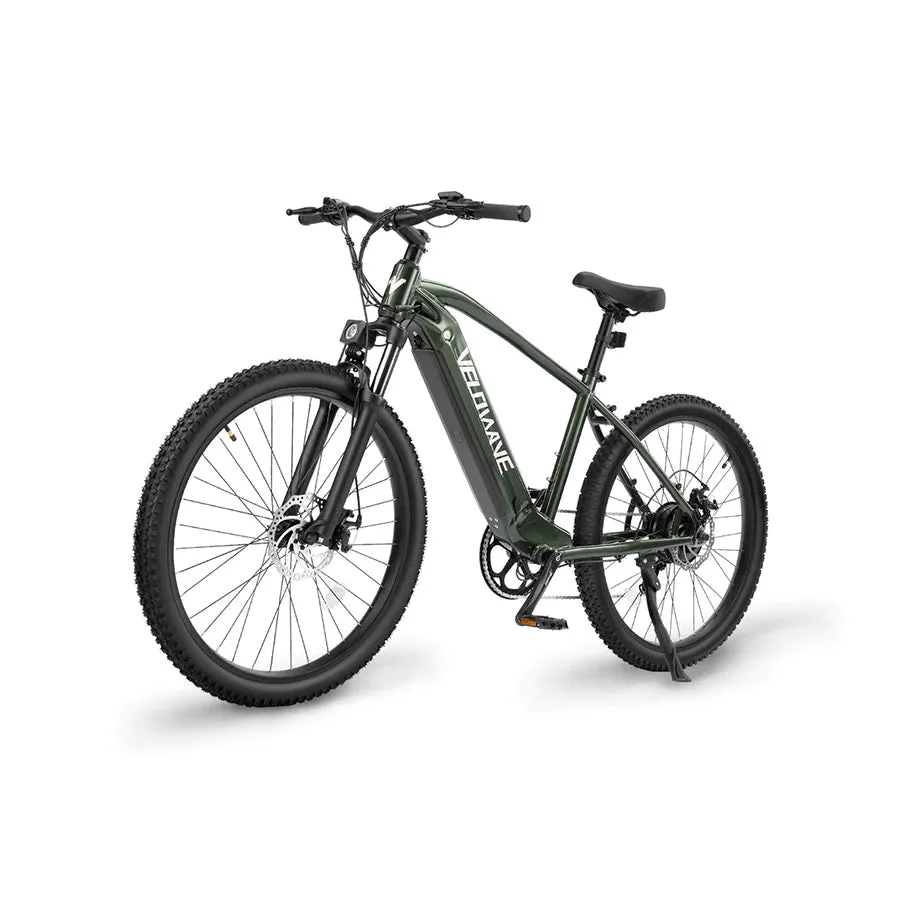

Velowave Ghost
Electric Mountain Bike - Top Speed 25mph - 500W
Experience the next evolution of Ghost E-Bike, now equipped with a robust 500W motor, empowering riders to effortlessly conquer any slope or landscape at a maximum speed of 25 miles per hour. With a spacious 48V 15AH LG Cells battery, enjoy up to 40 miles of riding on a single charge. Embark on your cycling adventure with Ghost and redefine your journey today!
TOP SPEED
MOTOR POWER
Removable Battery
TIRES
Rider Height
PAYLOAD CAPACITY
Front Suspension Fork
Experience superior performance with Velowave electric mountain bikes featuring customizable aluminum alloy front forks designed for optimal shock absorption. Adjust these forks to match various road conditions, ensuring a smooth and tailored riding experience. Additionally, the e-bike's front wheel comes equipped with a safety washer, providing an added layer of security to prevent any risk of the wheel coming loose.
500W Rear Hub Motor
Fitted with a potent 500W high-speed brushless motor, this electric vehicle delivers robust power, impressive climbing capabilities, and maintains peak speed with stability.
Shimano 7-Speed Drivetrain
The Shimano 7-speed drivetrain ensures precise and seamless shifting capabilities, effortlessly tackling hills during your ride. With a dual disc brake system, experience immediate and responsive braking for a safe and secure riding experience.
Features
Multifunctional TFT Color ScreenMonitor display functions - speed data, assist level, battery indicator, mileage display. The versatile color LCD display makes it easy to read day and night. | |
Removable LG Lithium BatteryEquipped with a 48V/15AH lithium battery and LG battery, it can travel 25-40 miles per full charge. The removable waterproof battery supports fast charging. It can be charged to about 80% in 4 hours and fully charged in 8 hours. | |
Streamlined Frame DesignThe body is constructed from a 6061 aluminum frame that perfectly houses the battery, controller, and wiring harness, contributing to the vehicle's streamlined, clean look. | |
Headlights for Night DrivingHigh-luminance Headlight-The bright headlight provides a safer and more enjoyable environment for night riding. | |
Dual Disc BrakeDual Disc Brake provide superior braking performance and durability.. | |
Safety ReflectorAt night, they glow when the lights of vehicles behind you illuminate the reflectors, preventing rear-end collisions when riding at night. |
SPECIFICATIONS
Specifications
| Frame Size | Standard (mm) |
| Handlebar Height | 1080mm |
| Reach | 460mm |
| Head Tube Length | 125mm |
| Seat Tube Length | 457.2mm |
| Standover Height | 768mm |
| Wheelbase | 1188mm |
| Total Length | 1940mm |
| Seat Height Min/Max | 878/1056mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range:20 to 35 Mile by Pedal; 28 Mile by Throttle(Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork:Front Suspension Fork
Wheels
- Rim Material: Aluminum
- Rim Size: 27.5" 36H
- Front Wheel Spokes: 13G x 258
- Rear Wheel Spokes: 13G x 212/214
- Tire:Kenda Standard Tires
- Tire Size:27.5" x 2.35"
E-system
- Battery: 48V 15Ah, 720Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor:BAFANG Geared Hub Motor, Rated 500W, Peak 850W, Max Torque 55NM
- Controller:48V 20A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Cadence Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar:Alloy, 690mm width
- Grips: Nylon Lock-on
- Brake:Font & Rear Mechanical Disc Brakes
- Brake rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost:Forged Alloy, ∅31.6*350mm
- Stem:Bar bore: ∅31.8mm, Clamp I.D.: ∅28.6mm, HEIGHT: 40mm, RISE: ±7°
- Handlebar:Aluminum ∅31.8mm,Width 680mm
Weight
- Net Weight:26kg(57.3lb)
- Gross Weight:36kg(79.4lb)
- Battery Weight: 3.85kg(8.5lb)
- Weight limit:127 kg (280 lb) Payload Capacity
Size
- Product Size:1860*1080*690mm
- Packing Size:1580*320*825mm
