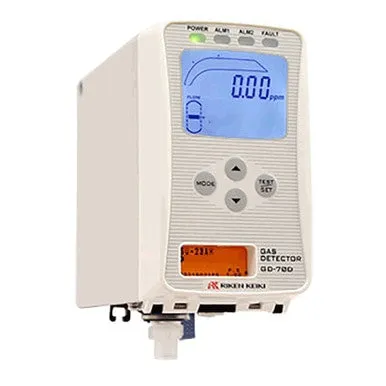

GD-70D Series Sample Draw Transmitter Gas Detector for Hydrogen Peroxide (H2O2) has a range on 0-3 ppm. The GD-70D can be used as a stand-alone device, offering a number of communication protocols to existing PLC systems, or can be integrated with RKI’s Beacon series of single and multi-channel controllers.

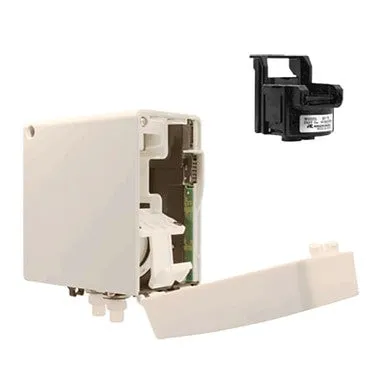

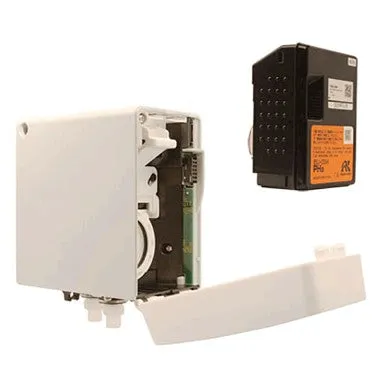

The long life high capacity pump and wide variety of sensing elements are replaceable in a few seconds, with no tools required! The smart sensors, like the , retain all calibration and sensor-specific data in non-volatile memory, so sensors can be hot-swapped in the field with no programming required. The sensors also retain calibration information, which means they can be conveniently calibrated separate from the transmitter, avoiding transport of calibration gases to the field location. The GD-70D firmware automatically corrects for long-term zero and span “drift” minimizing maintenance and maximizing reliability.
Applications: Fumigation Disinfection of Medical Facilities, Pharmaceutical Environments, Cleanrooms, Production Filling Lines, and Chemical Fogging for the Food Industry
Features
- Monitor combustibles, O2, and a wide range of toxics
- Monitor vaporized hydrogen peroxide (VHP) fumigation and disinfection
- Plug and play smart sensors retain calibration and sensor data
- Common platform (Main unit / Sensor / Pump) for all detection methods
- Universal main unit (all sensor types)
- Multifunctional sensor unit (New Intelligent sensor)
- No internal tubing (main unit) / No coil (pump)
- Front access, no tool required, easy sensor and pump replacement
- Large size LCD screen
- Various communication methods available (4-20mA, NT and PoE)
- Minimal maintenance cost through enhanced troubleshooting firmware functions
- Small mounting space
- Environmentally friendly
- Detection Range: 0-3 ppm
- AGIH/TLV-TWA: 1 ppm
Manual:
Product Numbers:
GD-70D-H2O2
