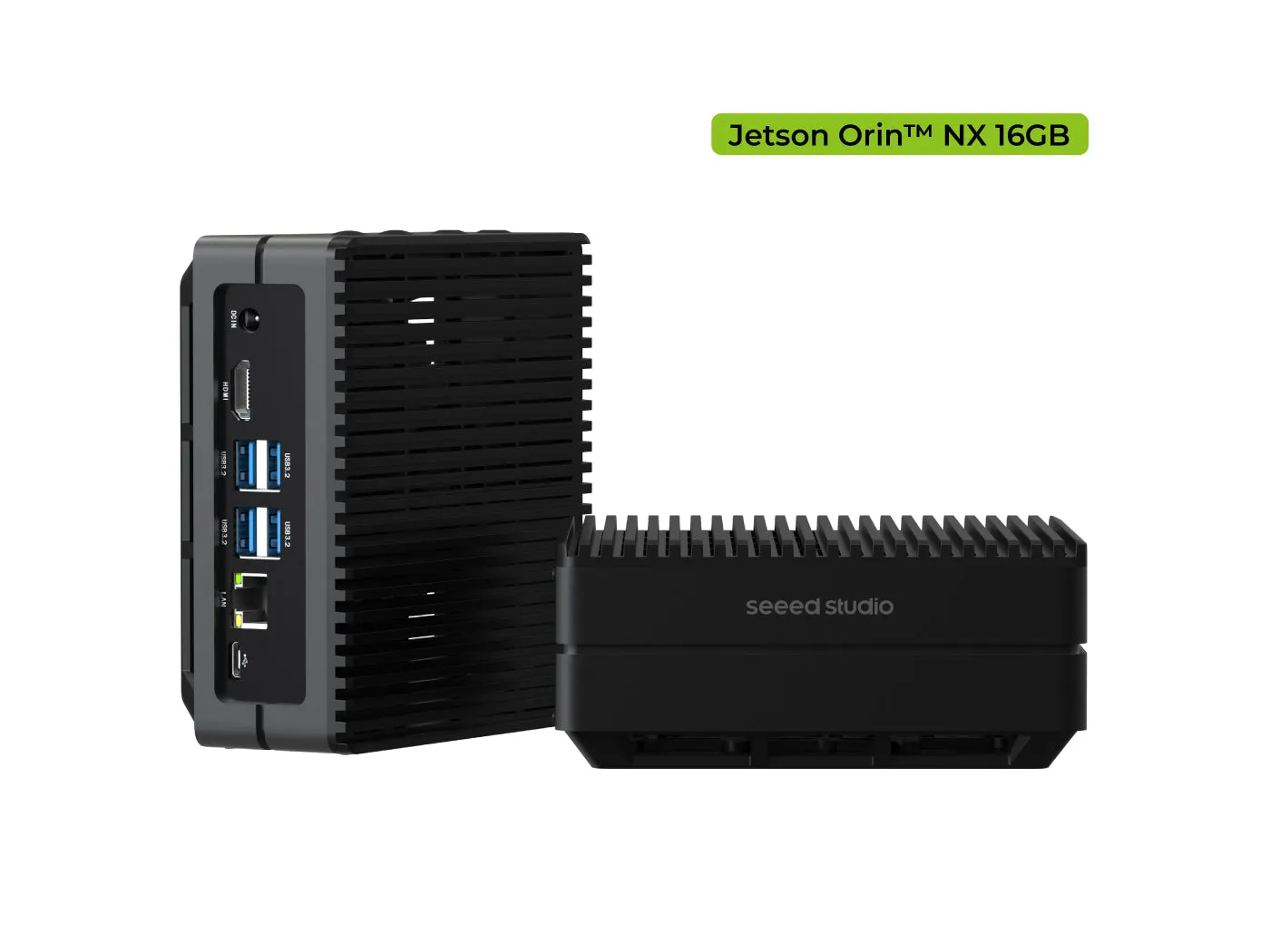

reComputer J4012 is a powerful and compact intelligent edge box to bring up to 100 TOPS modern AI performance to the edge, which offers up to 5X the performance of Jetson Xavier NX and up to 3X the performance of Jetson AGX Xavier. Combining the NVIDIA Ampere™ GPU architecture with 64-bit operating capability, Orin NX integrates advanced multi-function video and image processing, and NVIDIA Deep Learning Accelerators.

The full system includes one Jetson Orin™ NX production module, a heatsink, and a power adapter. reComputer J4012 is preinstalled with Jetpack 5.1, simplifies development, and fits for deployment for edge AI solution providers working in video analytics, object detection, natural language processing, medical imaging, and robotics across industries of smart cities, security, industrial automation, smart factories.

Features

• Brilliant AI Performance for production: on-device processing with up to 100 TOPS AI performance with low power and low latency
• Hand-size edge AI device: compact size at 130mm x120mm x 58.5mm, includes Jetson Orin™ NX production module, a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere
• Expandable with rich I/Os: 4x USB 3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO.
• Accelerate solution to market: pre-installed JetPack 5.1, Linux OS BSP, 128GB SSD, support Jetson software and leading AI frameworks and software platforms
• Comprehensive certificates: FCC, CE, RoHS, UKCA

Description

reComputer series for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems: J10 () and J20 ( and ). Now we introduce the reComputer J4012 which is powered by Jetson Orin™ NX 16GB module and reComputer J401 carrier board.

With rich extension modules, industrial peripherals, and thermal management, reComputer for Jetson is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).

At Seeed Studio, you will find everything you want to work with the – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, edge devices, as well as accessories.

Welcome to check out our . We are looking forward to leveraging local and global resources to accelerate next-gen AI products together with you.

Comparison among reComputer J40 series boards



Specifications	reComputer J4011	reComputer J4012
Module	Jetson Orin NX 8GB	Jetson Orin NX 16GB
AI Performance	70 TOPS	100 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
GPU Max Frequency	765 MHz	918 MHz
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 4MB L3	8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 4MB L3
CPU Max Frequency	2 GHz
Memory	8GB 128-bit LPDDR5 102.4GB/s	16GB 128-bit LPDDR5 102.4GB/s
DL Accelerator	1x NVDLA v2	2x NVDLA v2
DLA Max Frequency	614 MHz
Vision Accelerator	1x PVA v2
Storage	(Supports external NVMe)
Video Encoder	1x 4K60 (H.265) | 3x 4K30 (H.265) 6x 1080p60 (H.265) | 12x 1080p30 (H.265)
Video Decoder	1x 8K30 (H.265) | 2x 4K60 (H.265) | 4x 4K30 (H.265) 9x 1080p60 (H.265) | 18x 1080p30 (H.265)
Display	1* HDMI 2.1
CSI Camera	2* CSI （2-lane 15pin）
Networking	1* Gigabit Ethernet (10/100/1000M)
USB	4* USB 3.2 Type-A (10Gbps); 1*USB2.0 Type-C (Device Mode)
M.2 Key M	1* M.2 Key M
M.2 Key E	1* M.2 Key E
Fan	1* 4 pin Fan Connector(5V PWM)
CAN	1* CAN
Multifunctional Port	1* 40-Pin Expansion header,1* 12-Pin Control and UART header
RTC	RTC 2-pin, RTC socket
Power	9-19V
Power Supply	DC 12V/5A(Barrel Jack 5.5/2.1mm)
Temperature	-10℃~60℃
Mechanical	130mm x120mm x 58.5mm



Application

For both beginners and experts, it is designed to help you to build your next-gen autonomous machine at the edge.

Edge AI Applications

reComputer J20 series, powered by Xavier NX, is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more.

• • license plate detection
  • car detection
  • pedestrian detection
• Industry 4.0:
  • , , and custom PPE detection
• Retail:
  • sentiment analysis(: learn your customer with AI by Zenus smart camera),
• Robotics:
• Edge AI into the Wild:
• Agriculture: weeding machines, Tractors, Livestock detection
• Healthcare: medical imaging analysis

Find in the page tools and tutorials the community has created to power your development experience, and check out the page to inspire your next project!

AI Beginners learning center

If you would like to get critical AI skills and dive into deep learning. NV
