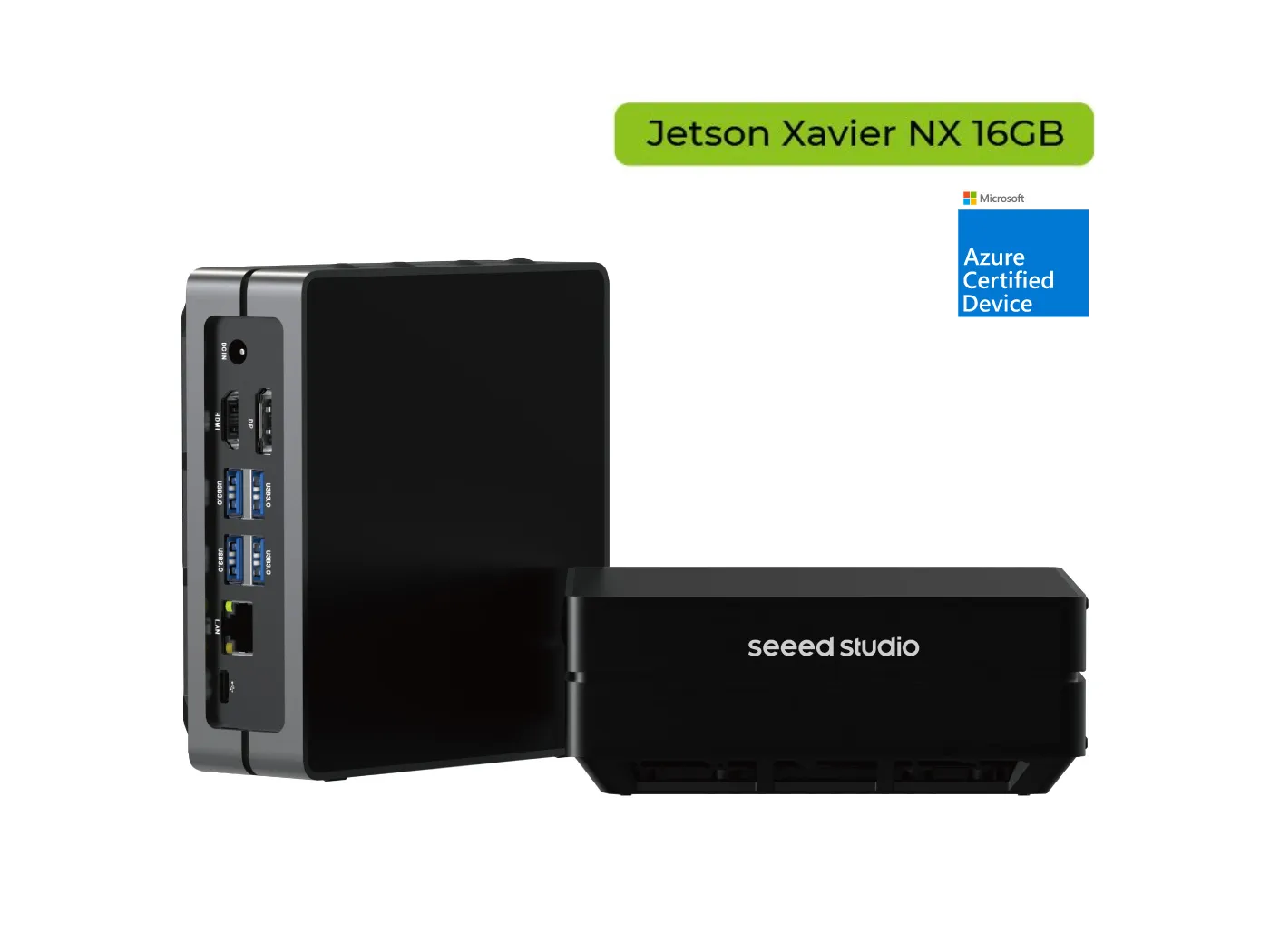

Name: reComputer J2022-Edge AI Device with Jetson Xavier NX 16GB module, 4xUSB, M.2 Key E & Key M Slot, Aluminum case, Pre-installed JetPack System
SKU: 176104

reComputer J2022 is a hand-size edge AI box built with Jetson Xavier NX 16GB module which delivers up to 21 TOPs AI performance, a rich set of IOs including USB 3.1 Gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on, aluminum case, cooling fan, pre-installed JetPack System, as NVIDIA Jetson Xavier NX Dev Kit alternative, ready for your next AI application development and deployment.

Features

Hand-size edge AI device: built with Jetson Xavier NX 16GB Production Module, delivering 384 NVIDIA CUDA® cores delivers up to 21 TOPs AI performance with a small form factor of 130mm x120mm x 50mm.
NVIDIA Jetson Xavier NX Dev Kit alternative: the carrier board brings rich IOs including a Gigabit Ethernet port, 4 USB 3.1 Gen2 ports, an HDMI port, and a DP port
Pre-installed NVIDIA JetPack: support the entire and various for building fast and robust AI application provided by Seeed Edge AI partners, helps develop innovative AI solution for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences, etc
Expandable with the onboard interfaces and reComputer case, able to mount on the wall with mounting holes on the back.

Description

reComputer series for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems: J10 () and J20 ( and ), where the reComputer J2022 is the Jetson Xavier NX 16GB module carried by .

With rich extension modules, industrial peripherals, and thermal management, reComputer for Jetson is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).

At Seeed Studio, you will find everything you want to work with the – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, edge devices, as well as accessories.

Welcome to check out our . We are looking forward to leveraging local and global resources to accelerate next-gen AI products together with you.

Comparison among reComputer J20 series and Official Dev Kits

Product

reComputer J2022

Module

Xavier NX (not the production version)

Xavier NX 16GB (production version)

Jetson Xavier NX 8 GB

Jetson Xavier NX 16GB

AI Perf

21 TOPS

GPU

384-core NVIDIA Volta™ GPU

CPU

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6 MB L2 4 MB L3

Memory

8 GB 128-bit LPDDR4x @ 51.2GB/s

16 GB 128-bit LPDDR4x @ 59.7GB/s

8 GB 128-bit LPDDR4x @ 59.7GB/s

16 GB 128-bit LPDDR4x 59.7GB/s

Storage

MicroSD (Card not included)

16 GB eMMC 5.1

Video encoder

2x 4K @ 30 | 6x 1080p @ 60 | 14x 1080p @ 30 (H.265/H.264)

2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)

2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 108p30 (H.264)

Video decoder

2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265)

2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264)

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)

2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Gigabit Ethernet

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

USB

4 * USB 3.1 Type A Connector;

1 * Micro-USB port for Device mode;

4 * USB 3.0 Type A Connector;

1 * Micro-USB port for Device mode;

4 * USB 3.1 Type A Connector；

1* USB Type-C (Device mode)

CSI Camera Connect

2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )

Display

1*HDMI Type A; 1*DP

FAN

1* FAN connector(5V PWM)

M.2 KEY E

1*M.2 Key E(WiFi/BT included)

1*M.2 Key E

M.2 KEY M

1*M.2 Key M

RTC

1*RTC Socket

RTC 2-pin

RTC socket

Multifunctional port

1* 40-Pin header

Power Requirements

DC Jack 19V 4.74A (MAX 90W)

12V/5A(Barrel Jack 5.5/2.1mm)

Mechanical

103 mm x 90.5 mm x 31 mm

130mm x120mm x 50mm

Note

If you use some GPIO libraries that cause floating voltage 1.2V~2V, GPIO issues on the carrier board could happen as the normal voltage should be 3V.

This is a common situation on the carrier boards, for both the reComputer series and the official Nvidia Jetson developer kit.

Thus, aftersales / warranty does not come into effect regarding this issue.

For further information, refer to .

Application

For both beginners and experts, it is designed to help you to build your next-gen autonomous machine at the edge.

Edge AI Applications

reComputer J20 series, powered by Xavier NX, is ideal for building autonomous applications and complex AI tasks of image recognition, object detection, pose estimation, semantic segmentation, video processing, and many more.
