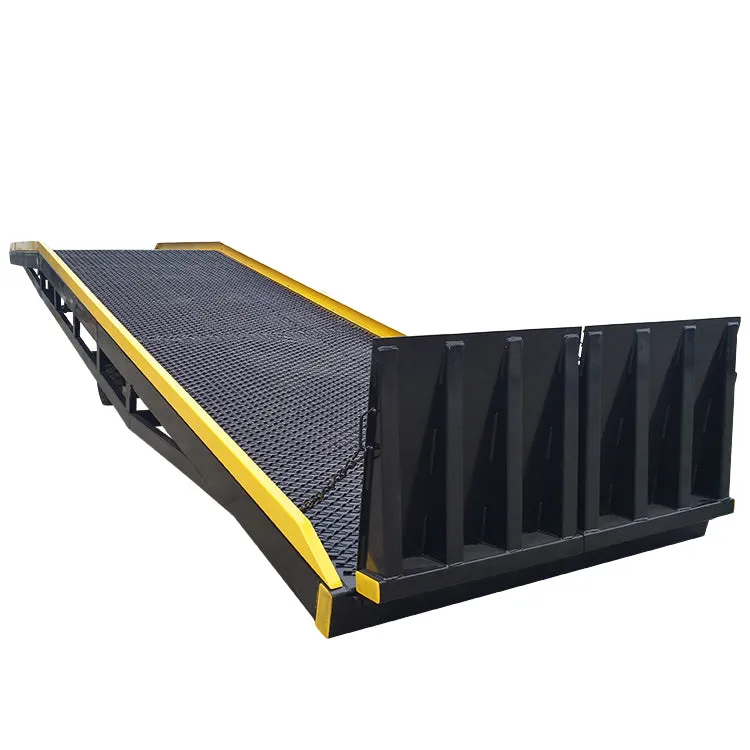

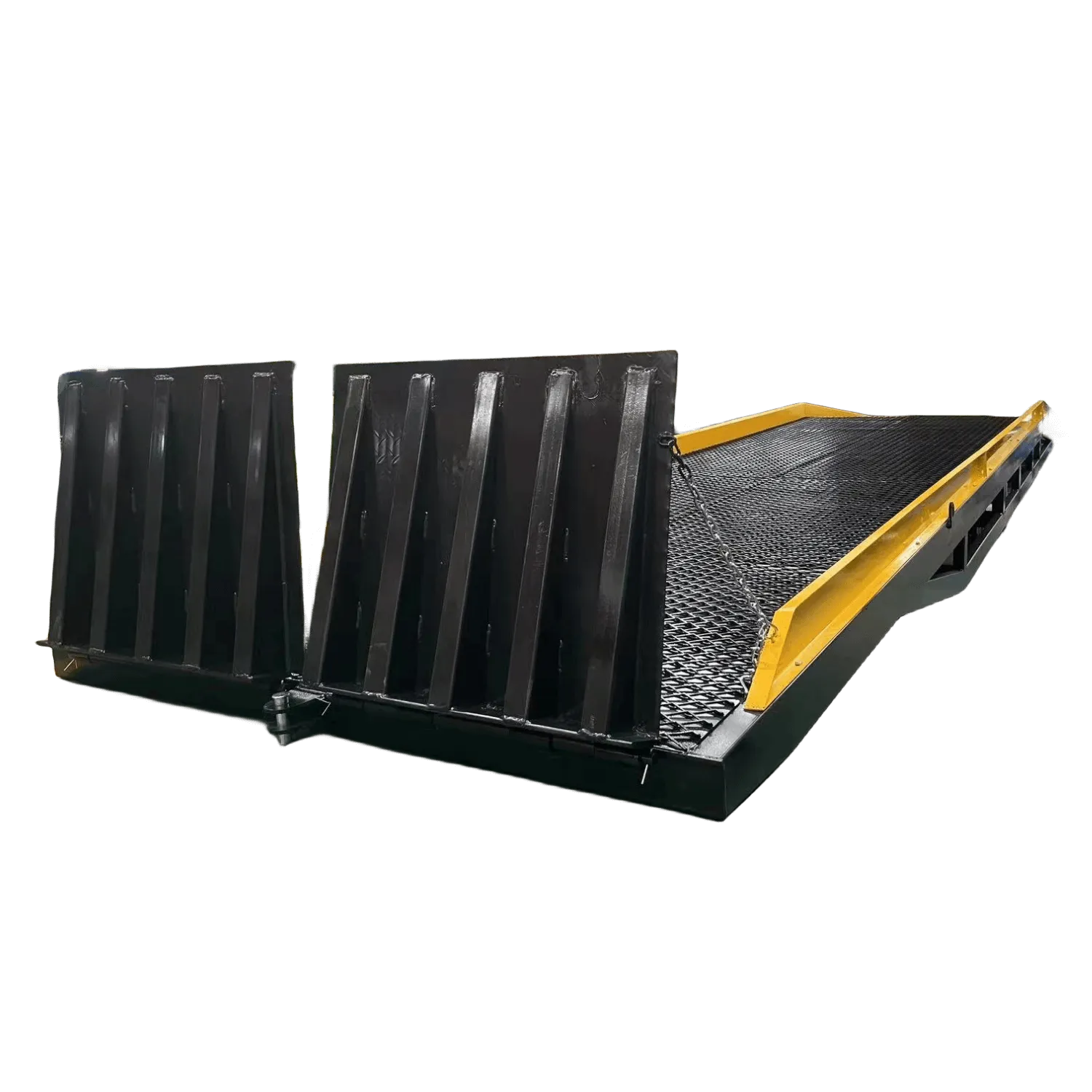

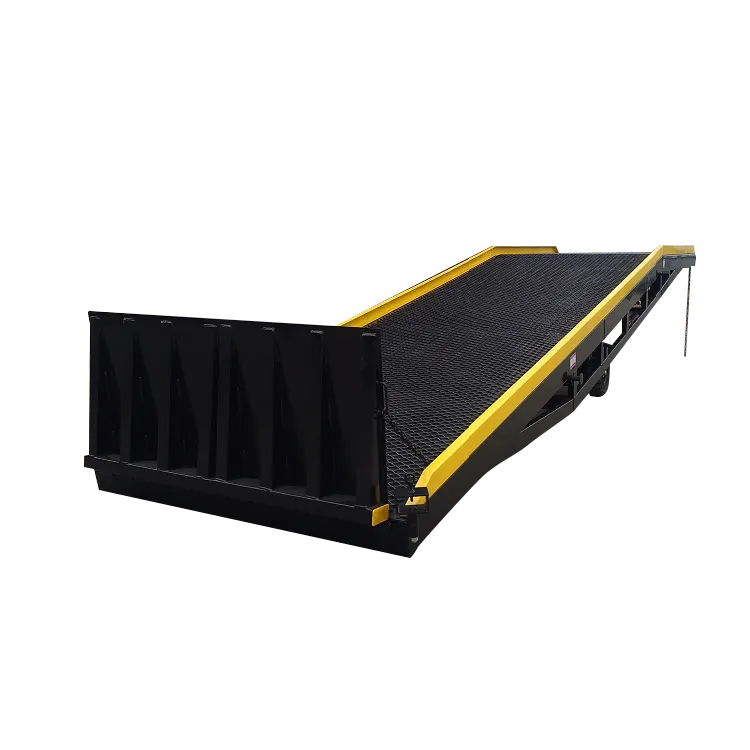

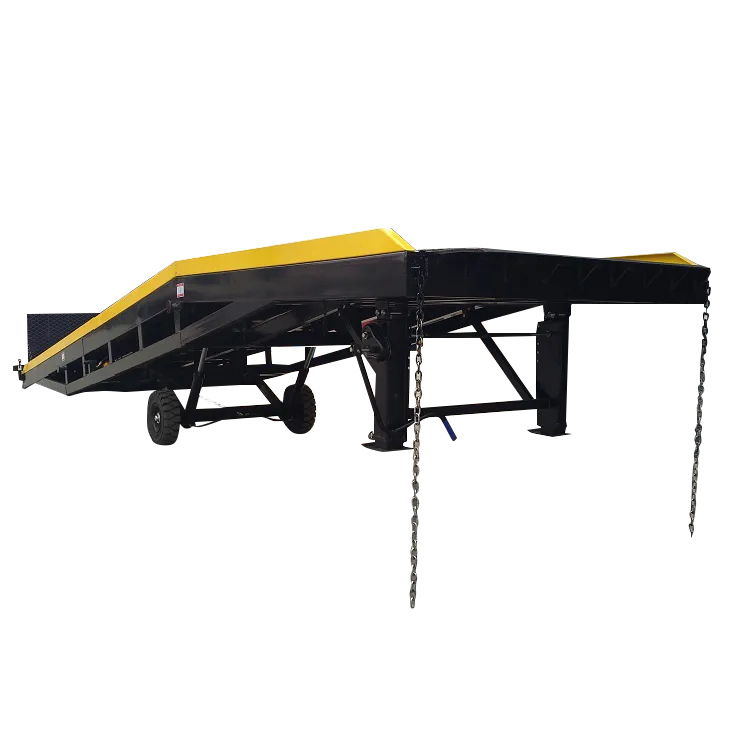

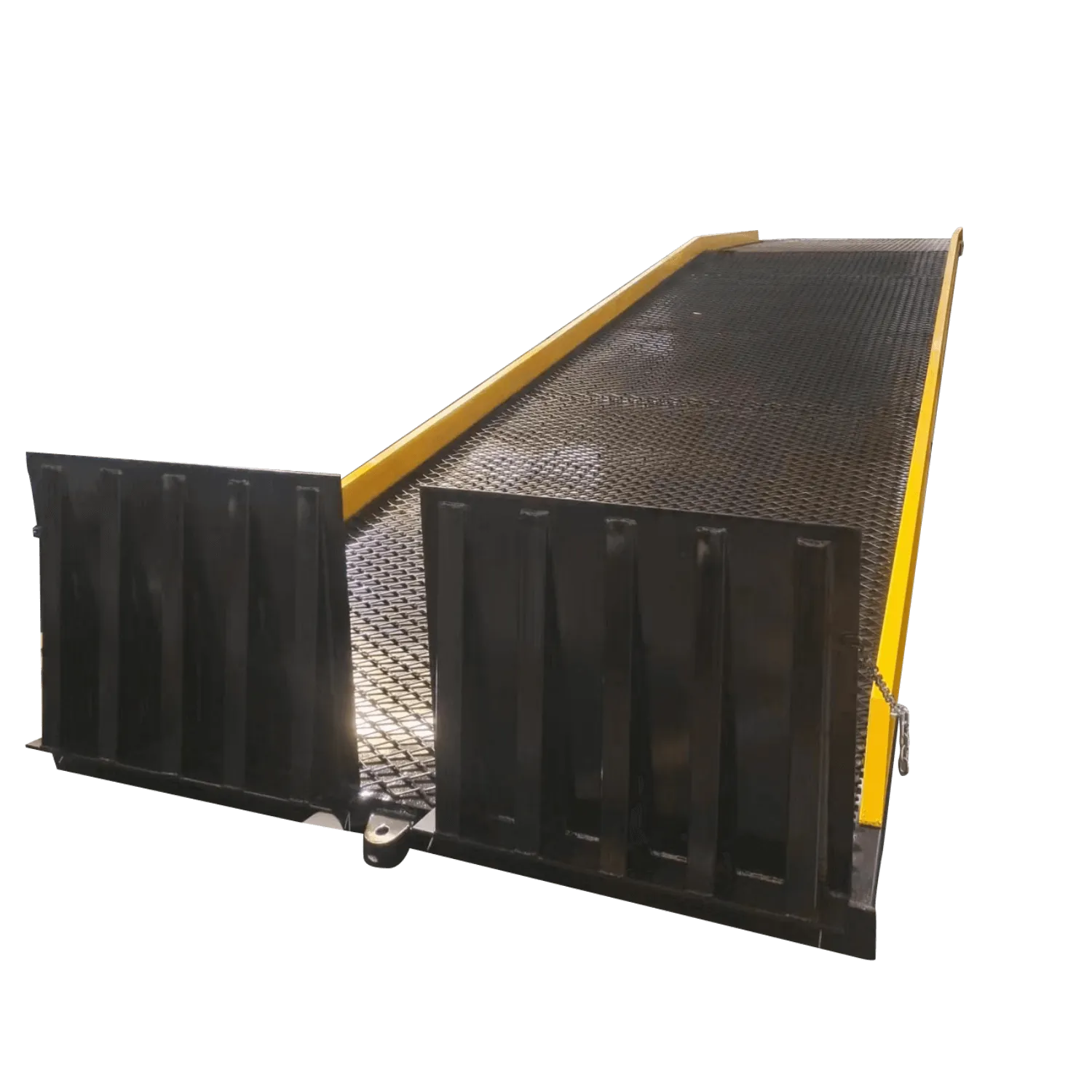

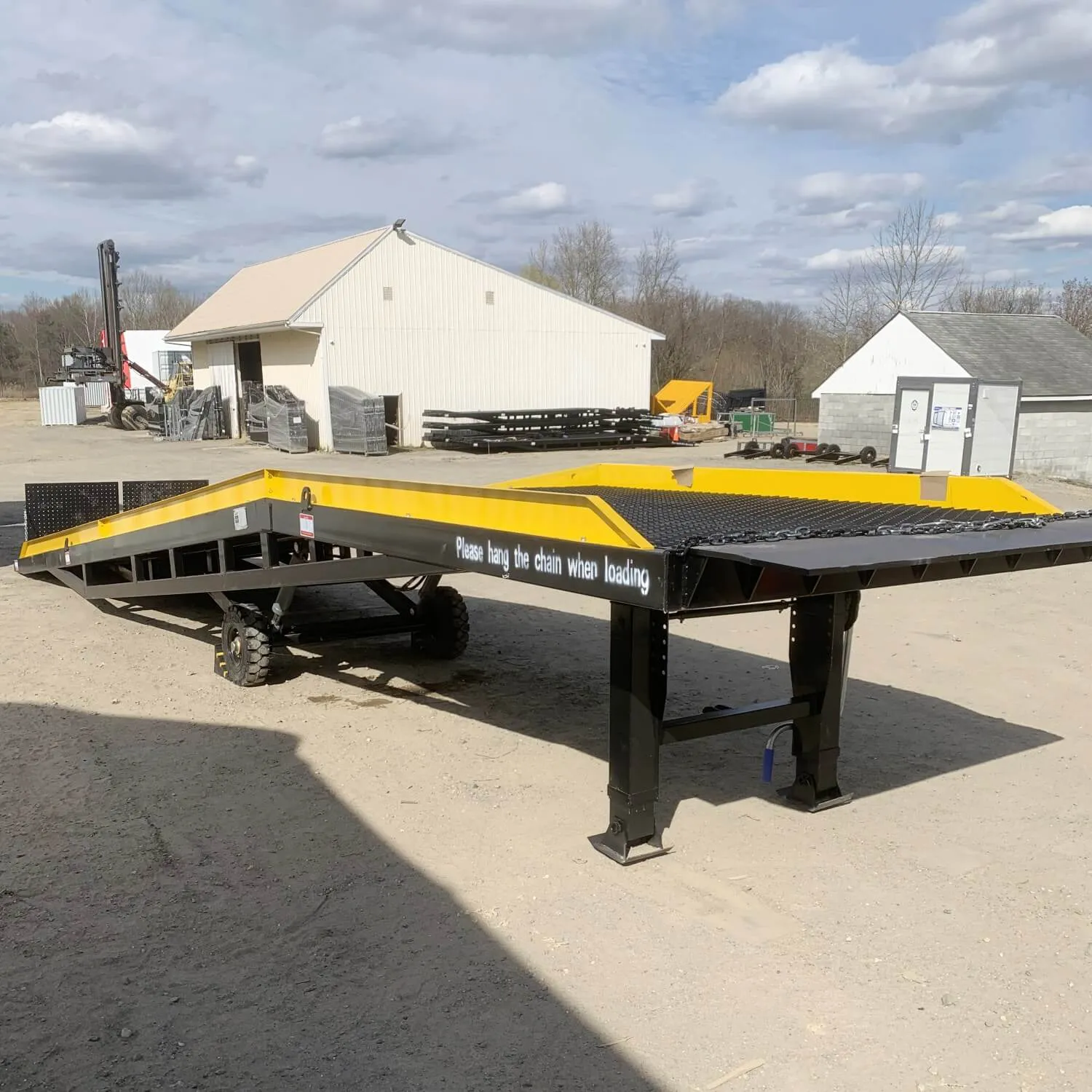

This steel yard ramp is designed for unloading trucks, trailers, or rail cars when dock space is not available. Made of durable steel, this patio ramp has a load capacity of 18,000 pounds and measures 37.1 feet long x 6.9 feet wide. Additional safety features include side rails on both sides to prevent the forklift from driving over the edge, and two safety chains to secure the ramp to the loading surface. These chains can be attached to the ICC bumper of your semi-truck trailer to prevent ramp kick-outs.
Necessary for unloading: A forklift or crane with a load capacity of 5000 kg.
Specification
| Material | Steel |
| Length | 37.1' |
| Width | 82.7" |
| Minimum Height | 31.5" |
| Maximum Height | 71" |
| Weight | 5,292 lbs |
| Maximum Capacity | 18,000 lbs |
| Power | AC(380V/220V/110V) |
