A203 Mini PC is a powerful and extremely small intelligent edge computer to bring modern AI to the edge, the smaller form factor than the Jetson NX Developer Kit delivers the same AI power for up to 21 TOPs. For smart cities, security, industrial automation, smart factories, and other edge AI solution providers, A203 Industrial Mini PC combines exceptional AI performance, and sufficient storage with a rich set of IOs— HDMI, 2x USB3s, RS232, I2Cs, and GPIOs, supports operating range from -20°C to 60°C for AI embedded industrial and functional safety applications in a power-efficient, small form factor.
Features
-
Extremely small form factor full system: 100mm x 44mm x 59mm edge AI box packs Jetson Xavier NX 8GB production module, rich-interfaces carrier board, 128 GB NVME SSD, WIFI module, heatsink, fan, and enclosure case.
-
Advanced embedded AI system: 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines.
-

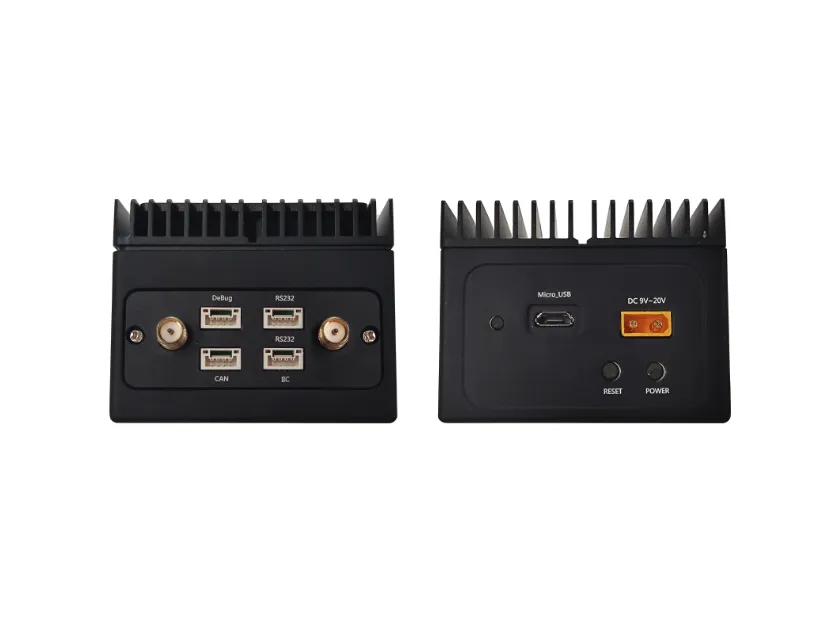

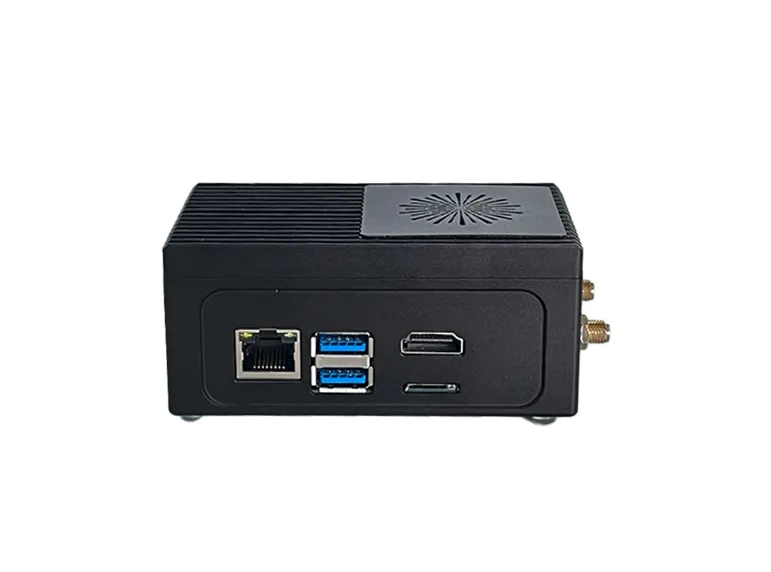

Built with rich sets I/Os : 1 x RJ45 Gigabit Ethernet, 1x HDMI, 1x Audio Jack, 2x USB 3, 1x Micro USB, CAN, microSD Card Slot, reset button.
-
Energy efficient: 9V to 19V DC Input @ 3A, Jetson Xavier NX module delivers server-class performance—up to 14 TOPS at 10W or 21 TOPS at 15W or 20W.
-
Cetifications: FCC, CE, RoHS
Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance computing and AI in embedded and edge systems. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
Seeed is a reseller of NVIDIA embedded systems and a preferred partner of the NVIDIA Jetson ecosystem for edge AI. Explore more carrier boards, full system devices, customization services, use cases,s and developer tools at Seeed Jetson Ecosystem!
Ready for development and deployment
A203 Mini PC is pre-installed with Jetpack 5.0.2, ideal for developing AI systems deployed at smart factories, automated optical inspection, and other AIoT embedded systems with entire and various for building fast and robust AI applications provided by Seeed Edge AI partners.
Perfect for intelligent video analytics and industrial automation use
With the help of the NVIDIA® TensorRT library and Deepstream framework, you can get the maximum of the NVIDIA® Jetson™ processors. With all the optimizations applied, it is not a surprise to achieve desktop GPU-level framerates with deep learning algorithms in embedded form factors. Following our , you can efficiently run a custom YOLOv5 object detection model with 60 FPS with an image size of 640x640 at INT8 quantization.
Applications Reference
We also have the following use case and application example compatible with Xavier NX to help you take reference.
-
Industry 4.0:
-
, , and custom PPE detection
-
Robotics:
-
-
Retail:
-
sentiment analysis(: learn your customer with AI by Zenus smart camera),
-
license plate detection
-
car detection
-
pedestrian detection
Compare A203 Mini PC and Jetson Xavier NX Dev Kit Specs
| A203 Mini PC | ||
| Module | NVIDIA JETSON XAVIER NX | |
| AI Performance | 21 TOPs(INT8) | |
| CPU | 6-core 64-bit CPU, NVIDIA Carmel ARMv8.2 | |
| GPU | 384-core NVIDIA Volta GPU | |
| Memory | 8 GB 128-bit LPDDR4x 59.7GB/s | |
| Storage | 128GB M.2 NVME SSD, MicroSD slot | MicroSD card slot |
| Display | 1*HDMI Type A | 1*HDMI Type A; 1*DP |
| Video decoder | 2x 4K @ 60 | 4x 4K @ 30 | 12x 1080p @ 60 | 32x 1080p @ 30 (H.265) 2x 4K @ 30 | 6x 1080p @ 60 | 16x 1080p @ 30 (H.264) |
2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265) 2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264) |
| Gigabit Ethernet | 1*RJ45 Gigabit Ethernet Connector (10/100/1000) | |
| OS | JetPack 5.0.2 | without OS installed |
| USB | 4*USB3.0(USB 2.0 Integrated), 1*Micro USB | 4 * USB 3.1 Type A Connector; 1 * Micro-USB port for Device mode; |
| CSI Camera | 1 * CSI | 2*CSI |
| M.2 KEY E | 1*M.2 Key E(WiFi/BT included) | |
| Industrial Interface |
1x RS232, 1xCAN |
- |
| M.2 KEY M |
1x M.2 KEY M (include NVMe SSD) |
1x M.2 KEY M |
| RTC | 1*RTC Socket | - |
| Multifunctional port | 1* 40-Pin header | |
| Others | 1x I2S(3.3V Level);2x I2C Link ( 3.3V I/O);5x GPIO;1x UART;2x SPI | GPIO, I2C, I2S, SPI, UART |
| Power | 9V to 19V DC Input @ 8A | DC Jack 19V 4.74A (MAX 90W) |
| Mechanical | 100mm x 44mm x 59mm | 130mm x120mm x 50mm |
ECCN/HTS
| HSCODE | 8471419000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
